| Dimensions (W x D x H) (with chassis ears) |
mm : 482.6 x 698.5 x 177.8
inches : 19 x 27.5 x 7 |

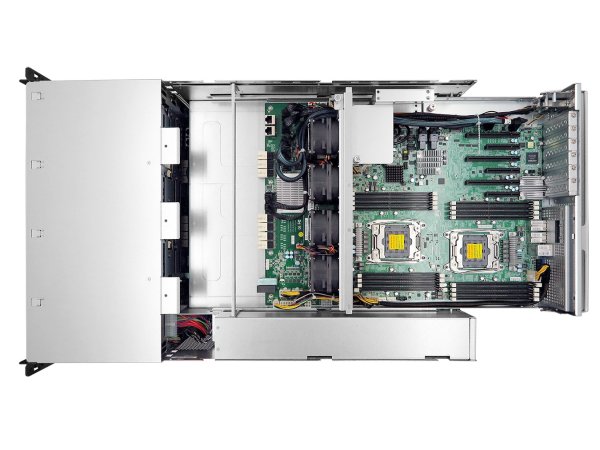

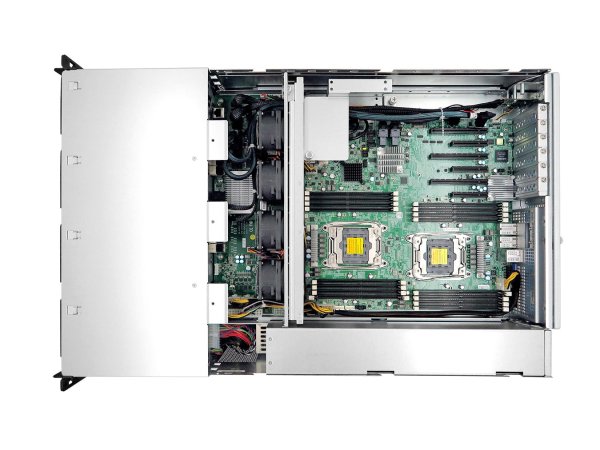

| Motherboard (per node) |
| AIC Libra Server Board |
| Processor (per node) |
| Processor Support : Two Intel® Xeon® Processors E5-2600 v3 and v4 product family |
| Supported QPI : 9.6 GT/s, 8 GT/s, 7.2 GT/s |
| Socket Type : Socket R3 (FCLGA2011-3) |
| Chipset Support (per node) |
| Intel® C612 Chipset |
| System Memory (per node) |
16 DIMM slots across 8 memory channels
(4 memory channels per CPU; 2DPC)
- 512GB DDR4 2133/1866 RDIMM DRx4
- 128GB DDR4 2133/1866 RDIMM SRx4
- 1024GB DDR4 2133/1866 LRDIMM QRx4
- 2048GB DDR4 2133/1866 LRDIMM 3DS 8Rx4 |
| Front Panel |
| Power on/off |
| LEDs |
A :
Power (Secondary)
Warning |
B :
Power (Primary)
Warning |

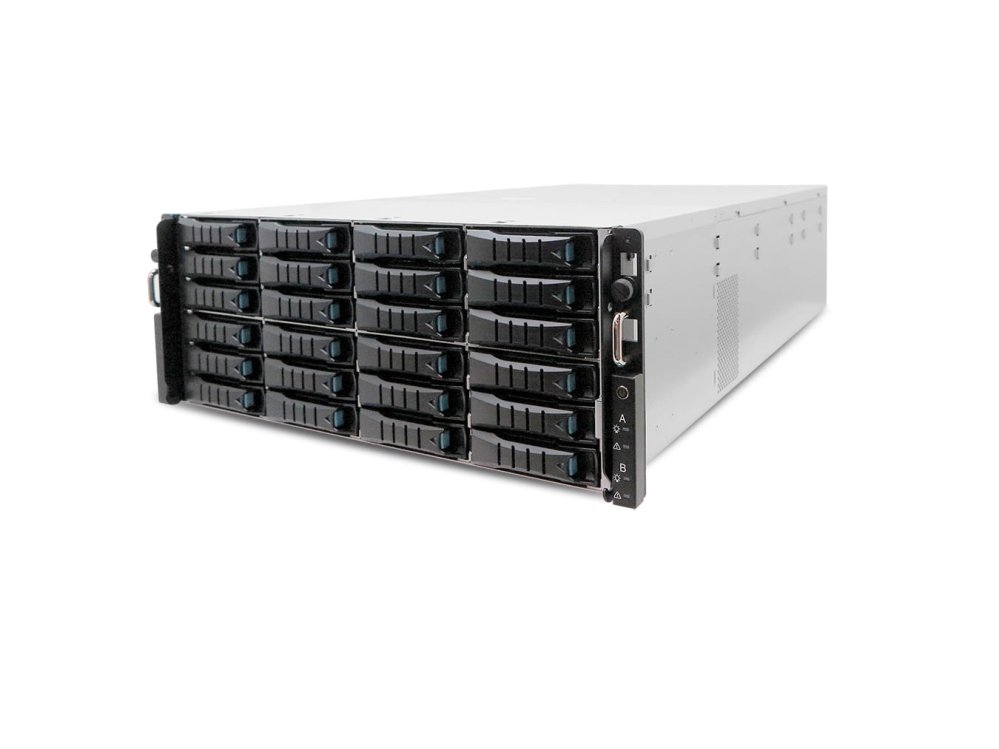

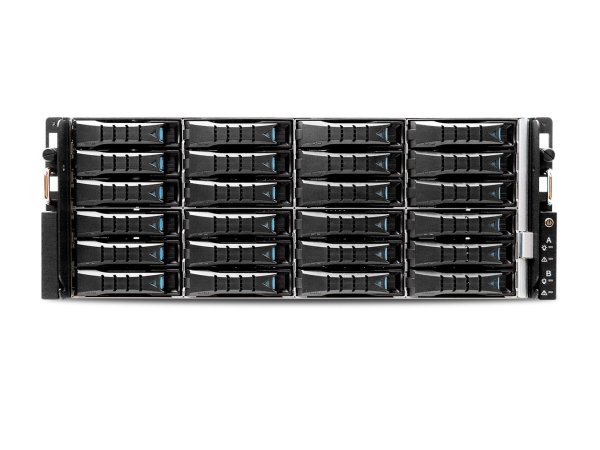

| Drive Bays |
| External : 24 x 3.5" hot swap |
| Backplane |
| 1 x 24-port 12Gb SAS backplane |
| Expander Board (per node) |
| 1 x 48-port 12Gb SAS expander board |
| Expansion Slots (PCIe 3.0) (per node) |
| 2 x16 + 1 x16 (x8 mode) + 3 x8 (all LP) |
| System BIOS |
BIOS Type :
Insyde UEFI BIOS
SPI (Serial Peripheral Interface) FLASH Interface |
BIOS Features :
ACPI
PXE
WOL
AC loss recovery
IPMI 2.0 KCS interface
SMBIOS
Serial console redirection
BIOS Boot Specification
BIOS Recovery Mode
SRIOV
iSCSI
TPM
PCIe NTB |
| On-board Devices |
SATA :
Built-in SATA controller with RAID support on Intel® C612 Chipset
8x 7pin SATA connectors
1x M.2 with SATA/PCIe X2 support |
IPMI :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
Baseboard Management Controller
Intelligent Platform Interface 2.0 (IPMI 2.0)
iKVM, Media Redirection, IPMI over LAN, Serial over LAN
SMASH Support |
Network Controllers :
Intel® Ethernet Controller X540-BT2 dual port 10 GbE, 10GBASE-T, PCIe v2.1, x8 [Or Intel® Ethernet Controller I350-AM2, dual port GbE, PCIe v2.0 (co-lay with Intel® X540-BT2). MOQ required.]
Intel® Ethernet Controller I210-AT, single port GbE controller, PCIe v2.1, 2.5 GT/s, x1
Intel® Ethernet Network Connection I217-LM, single port GbE, 1Gbps
Realtek® RTL8201EL single port 10/100 Mbps Ethernet PHYceiver for dedicated BMC port |
Graphics :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
PCIe VGA/2D Controller
1920x1200@60Hz 32bpp |
| Rear I/O (per node) |

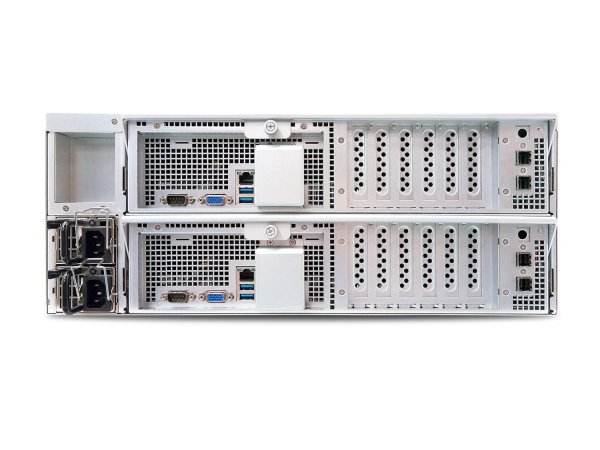

2 x SAS SFF8644
3 x RJ45 (1 for BMC)
2 x USB 3.0
1 x VGA and
1 x Serial |
| Power Supply |
1200W 1+1 redundant power supply 80+
100-240VAC, 47-63 Hz |
| System Cooling (per node) |
| 4 x 60x56mm hot swap fans |
| System Management |
IPMI 2.0
KVM over IP
Media redirection
Temperature, fan, voltage, PSU sensor monitor
System temperature
System ID / System fail indicator
Remote power on/off/reset
SEL message alarm through mail
SNMP support
Intel NM |
| Environmental Specifications |
Operating temperature : 0° - 35°C
Operating altitude condition : 0 - 10K feet
Storage temperature : -20° - 60°C
System relative humidity : 5% - 95% (38°C) non-condensing |
| Gross Weight (w/PSU & Rail) |
kgs : 47
lbs : 104 |
| Packaging Dimensions (W x D x H) |
mm : 660 x 970 x 420
inches : 26 x 38.2 x 16.6 |
| Mounting |
| Standard : 28" slide rail |
