AIC Libra without both Dual 10GbE & IOC-3008

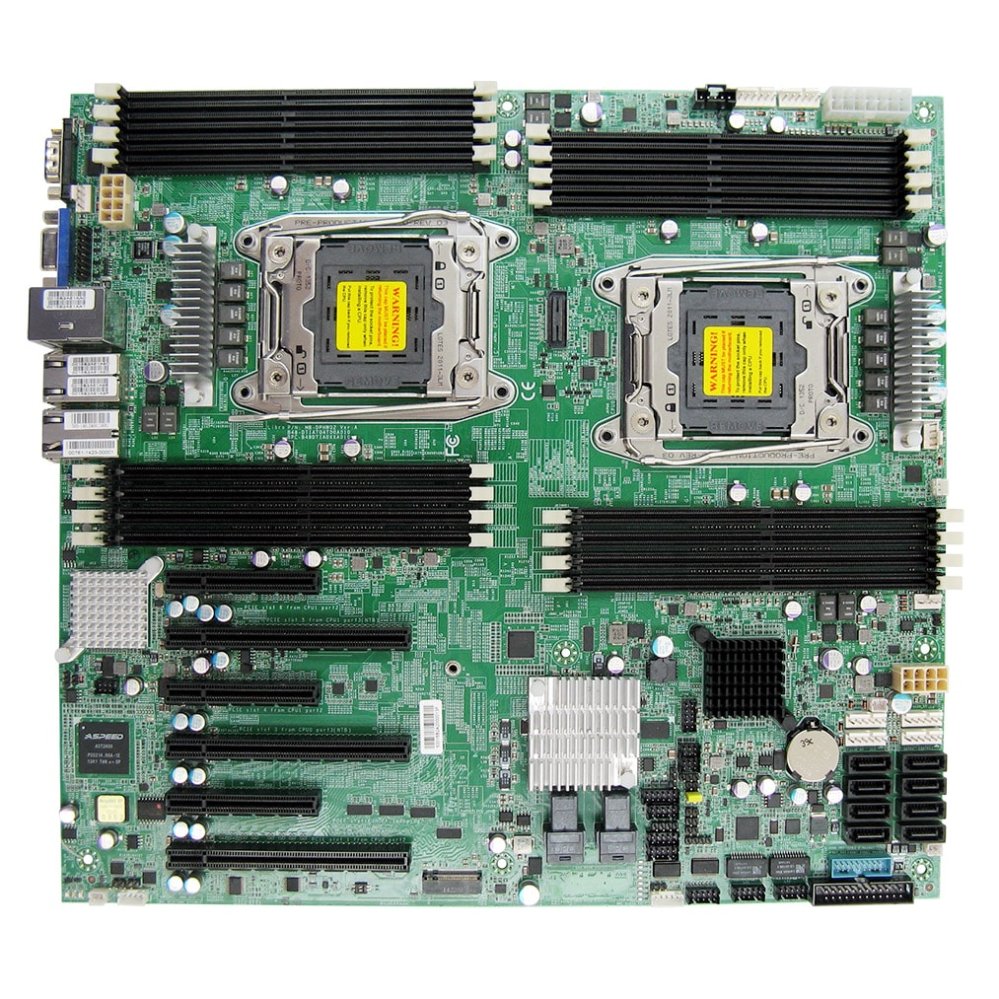

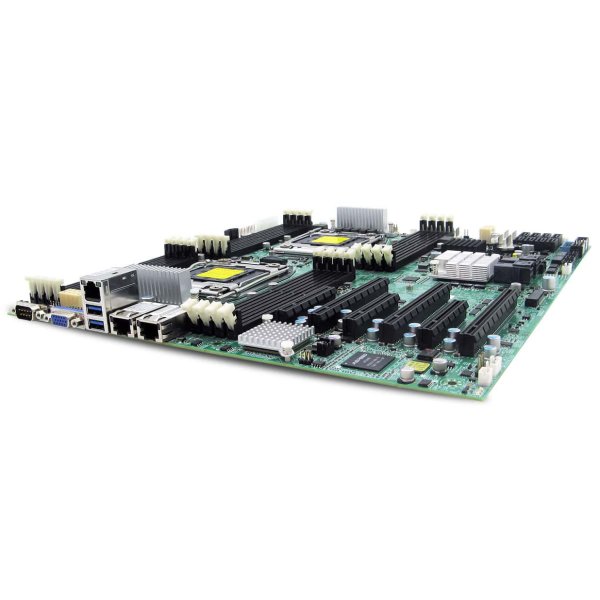

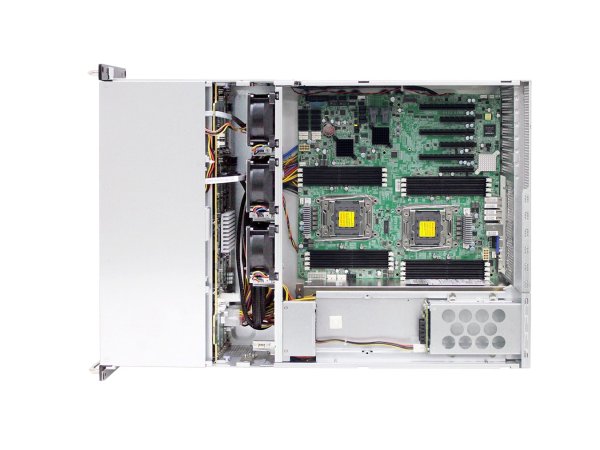

The Libra series server board, standard EATX form factor, offers compelling performance and improved power efficiency, which is optimized for efficient performance platforms (storage, security and communications infrastructure).
By implementing the next-generation 22nm/14nm Intel® Xeon® Processor E5-2600 v3 and v4 product family, fully integrated microarchitecture, the Libra series server board delivers unmatched performance, providing 2S support with four channels of DDR4 2133/2400 per socket, dual 10GBase-T, and optional LSI SAS 3008 IOC onboard.
Featured with ground breaking technologies including Intel® Next Generation Microarchitecture and Instruction Set (including AVX 2.0), Energy Efficient Turbo, Increased Intel® QPI link speeds up to 9.6GT/s and DDR4 memory, the Libra series server board enables next generation server solutions with an incredible leap in performance in a standard EATX form factor platform.
Supports two Intel® Xeon® Processors E5-2600 v3 and v4 product family for significantly increased server performance
Supports 16 DDR4 DIMM slots for maximum memory performance
5+ years of product life cycle (based on chipset roadmap)
Baseboard Management Controller (BMC)
- IPMI 2.0 Spec
- iKVM, Media redirection, SMASH support
- KCS (keyboard controller style), IOL (IPMI over LAN), SOL (Serial over LAN) interface
- Temperature, voltage and fan speed monitoring
- Smart fan speed control
- System identification, fan fail alarm, system status alarm LED
- Remote power ON/OFF/Reset
- RMCP+ SNMP, DHCP in IOL support
- AES-128 encryption in RMCP+
6 x PCI Express v3.0 slots
Dual port 10GBase-T RJ45 plus dedicated 10/100 RJ45 for management
Optional LSISAS3008 I/O Controller for 12Gb/s SAS
| System | |
| Dimensions : mm : 304.8 x 330.2 inches : 12 x 13 | |
| Processor Support : Dual LGA2011-3 (Socket R3) to support two(2) Intel® Xeon® Processors E5-2600 v3 and v4 product family | |
| QPI Speeds : 9.6 GT/s, 8 GT/s, 7.2 GT/s | |
| Socket Type : Socket R3 (FCLGA2011-3) | |
| System Chipset : Intel® C612 Chipset | |
| System Memory : Four(4) memory channels per CPU socket, two(2) DIMMs per channel (2DPC) Sixteen(16) DIMM slots support: DDR4 2400/2133 RDIMM/LRDIMM - Up to 128GB RDIMM SRx4 - Up to 512GB RDIMM DRx4 - Up to 1024GB LRDIMM QRx4 - Up to 2048GB LRDIMM 3DS 8Rx4 | |
| Expansion Slots : 3 x PCIe v3.0 x16 slots 3 x PCIe v3.0 x8 slots | |
| System BIOS | |
| BIOS Type : Insyde UEFI BIOS SPI (Serial Peripheral Interface) FLASH Interface | |
| BIOS Features : ACPI PXE WOL AC loss recovery IPMI 2.0 KCS interface SMBIOS Serial console redirection BIOS Boot Specification BIOS Recovery Mode SRIOV iSCSI TPM PCIe NTB | |
| On-board Devices | |
| SATA/SAS : Built-in SATA controller with RAID support on Intel® C612 Chipset Optional: Avago (LSI) LSI SAS3008 SAS I/O Controller, PCIe v3.0 | |
| IPMI : Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor Baseboard Management Controller Intelligent Platform Interface 2.0 (IPMI 2.0) iKVM, Media Redirection, IPMI over LAN, Serial over LAN SMASH Support | |
| Network Controller : Intel® Ethernet Controller X540-BT2 dual port 10 GbE,10GBASE-T, PCIe v2.1, x8 Optional : Intel® Ethernet Controller I350-BT2, dual port GbE, PCIe v2.0 Intel® Ethernet Controller I210-AT, single port GbE, PCIe v2.1 Intel® Ethernet Network Connection I217-LM, single port GbE, 1Gbps Realtek RTL8201EL single port 10/100 Mbps Ethernet PHYceiver for dedicated BMC management port | |
| Graphics : Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor PCIe VGA/2D Controller 1920x1200@60Hz 32bpp | |
| Input/Output | |
| Serial ATA : 8 x SATA3 ports | |

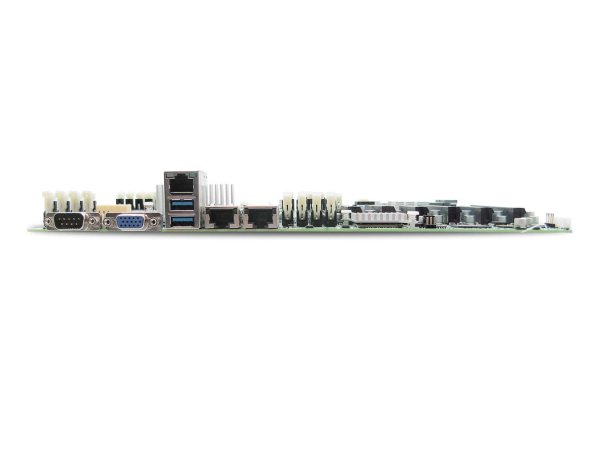

| LAN : 2 x 10G RJ45 (optional: 2 x GbE RJ45) 2 x GbE internal pin-headers 1 x GbE RJ45 dedicated to BMC management | |
| SAS (Optional) : 2 x Mini-SAS HD (SFF-8643) support up to 8 ports SAS 12Gb/s | |
| USB : 2 x USB 3.0 Type A connectors 1 x USB internal pin-header to support 2 x USB 3.0 + 2 x USB 2.0 | |
| VGA : 1 x external VGA port 1 x internal VGA pin-header | |
| Serial Port : 1 x external DB-9 serial port 1 x internal DB-9 serial pin-header | |
| Others : Debug display pin-header, GPIO port IPMB pin-header, Chassis intrusion | |
