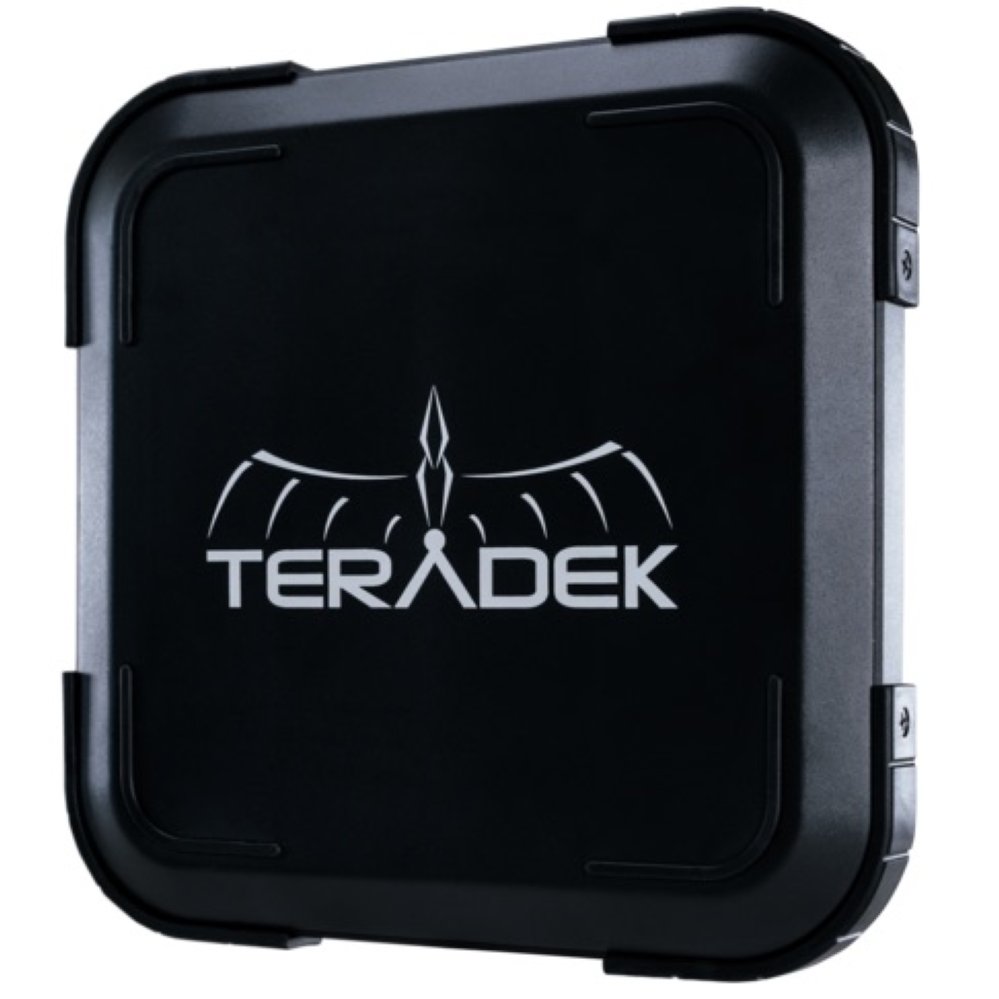

Bolt 10K приемник

Bolt 10K - это высоклассный приемник, работающий с нулевой задержкой; на расстояния до 3 км. Bolt 10K поддерживает; видео сигнал до 1080p60 4:2:2, корпус сделан на базе нового шасси, имеет надежный диапазон и передает HD видео визуально без потерь.

Video Outputs

•  1 x SD/HD/3G-SDI (75 Ohm BNC)
• 1 x HDMI Type-A receptacle
• 1 x USB 3.0 micro B receptacle

Sdi Ancillary Data Support

• supports metadata, timecode, and start/stop flags from certain camera manufacturers.

Color Sampling

• SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
• HDMI: RGB 4:4:4, 8-bit

Delay Tx To Rx

•  <0.001sec (without format conversiond)

 Supported Resolutions

• 1080p 23.98/24/25/29.97/30/50/59.94/60
• 1080psf23.98/24/25/29.97/30
• 1080i50/59.94/60
• 720p50/59.94/60
• 480p59.94/576p50 (via HDMI ports only)
• 480i(NTSC)/576i(PAL)

Video Compression

• visually lossless

Test Pattern Generator Support

•  Yes

Color Correction

• CDL/1024 1D LUT (supports 10-bit color)
• 33x33x33 3D LUT (supports 10-bit color)

Audio Processing -

• Audio Compression 48kHz 24-bit PCM

Physical -

• Dimensions 9.29" x 9.29" x 2.61" (236mm x 236mm x 66.2mm)
• Weight 41.6oz (1179g)
• Construction ABS Plastic and CNC Aluminum 6061-T6

Mountability

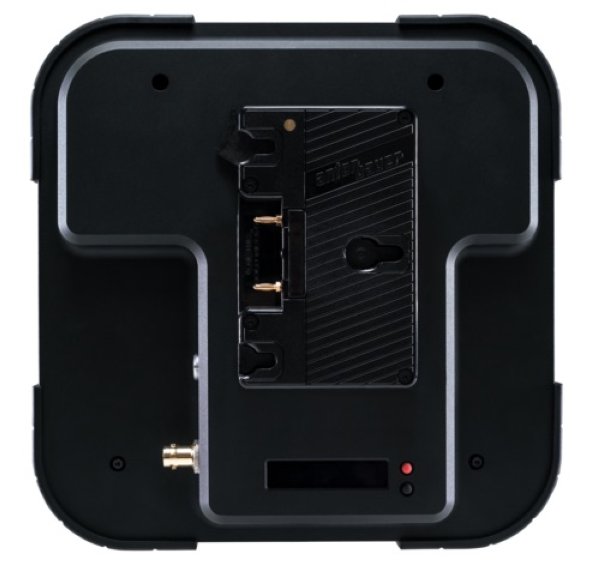

• Gold Mount Battery Plate in Back
• Multiple mounting options with 3/8" holes

Interfaces

•  Http None

Configuration Interfaces

•  OLED Screen with Menu Joystick Navigation

Desktop App

• Feature-rich Bolt Manager Application for OSX & Windows

Usb Interface

• Functionality Upgrade via Mini-USB

Wireless Non-DFS Frequencies:

• US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
• EU & JP: 5.19 ~ 5.23 GHz
• DFS Frequencies:
• US: 5.27 ~ 5.31 GHz and 5.51 ~ 5.67 GHz
• EU & JP: 5.51 ~ 5.69 GHz

Rf Channel Selection

• Auto and Configurable Channel selection

Encryption

• AES-128

Rf Power 17dbm EIRP(with one 2dbi TX antenna)

Range

• Up to 10,000 ft line of sight

Unicast Multicast

• Unicast / Multicast

Noise Rejection

• Can coexist with WiFi and 5GHz cordless phones

Power

• 2-Pin Connector 7-28 VDC or Gold Mount
• Battery Battery None
• Nominal Power Consumption 8.5 Watts (Measured at 1080p60)

Operating Temperature

• 0 ~ 50 deg-C
