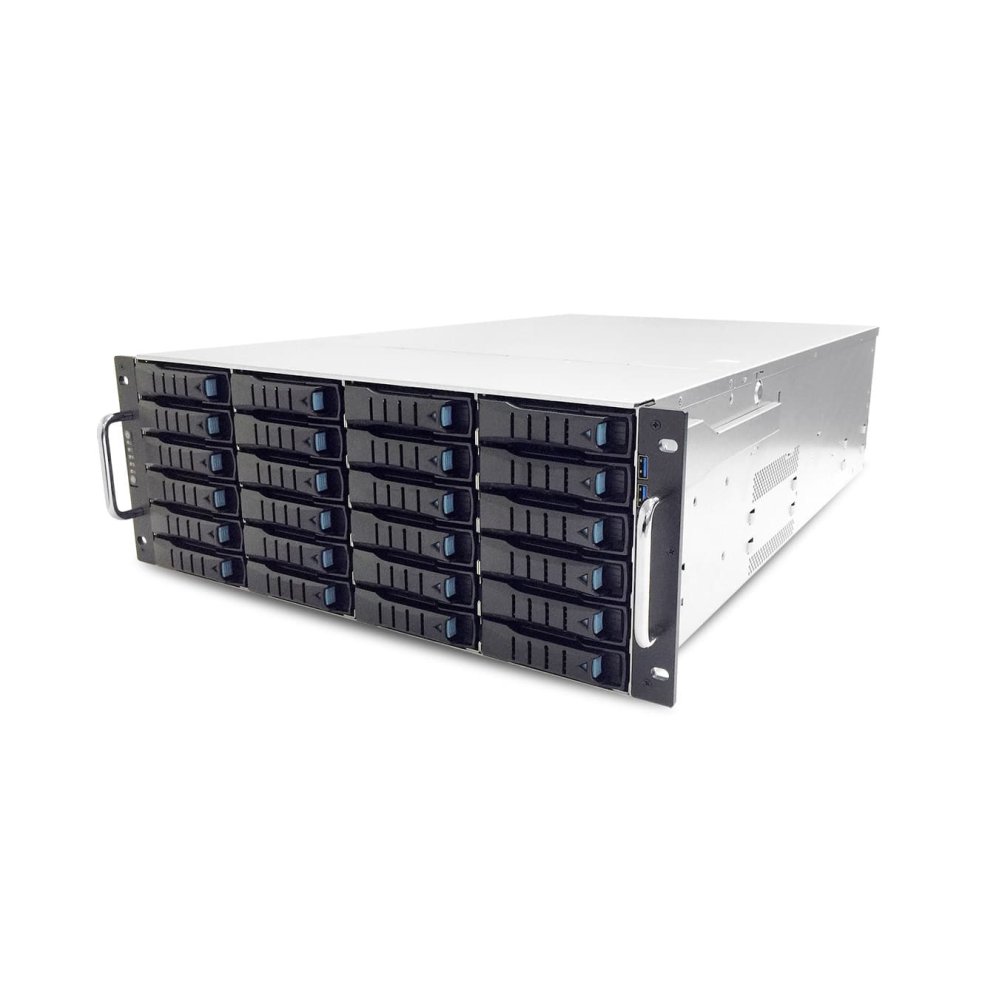

AIC SB402-LB without both Dual 10GbE IOC-3008

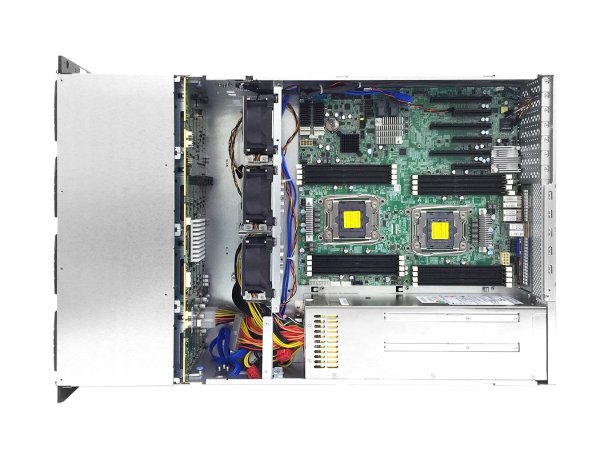

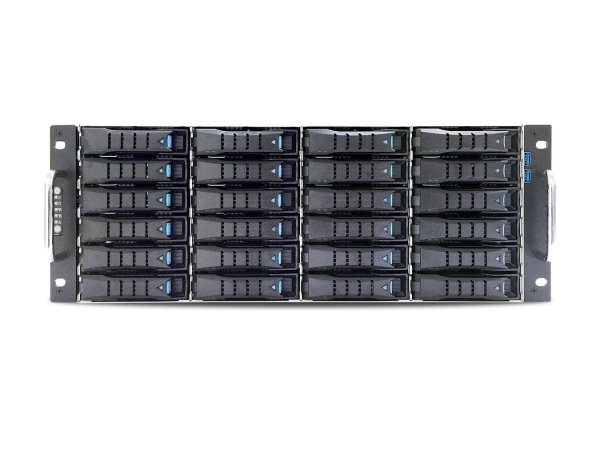

SB402-LB is a 4U 36-bay storage server solution with 24 bays in the front and 12 in the rear. It comes with AIC’s E-ATX server board, Libra, which supports dual Intel® Xeon® processor E5-2600 v3 and v4 product family and 6 x PCIe 3.0 slots.
4U 36-Bay storage server
Supports two Intel® Xeon® Processors E5-2600 v3 and v4 product family
With Intel® C612 Series Chipset to provide 5+ years product life cycle
6 x PCIe 3.0 slots
Onboard Baseboard Management Controller for system management and IPMI control
Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
Two 10 GbE RJ45 ports
| Dimensions (W x D x H) (with chassis ears) |
| mm : 483 x 679 x 173.5 inches : 19 x 26.7 x 6.8 |
| Motherboard |
| AIC Server Board Libra |
| Processor |
| Processor Support : Two Intel® Xeon® Processors E5-2600 v3 and v4 product family |
| QPI Speeds : 9.6 GT/s, 8 GT/s, 7.2 GT/s |
| Socket Type : Socket R3 (FCLGA2011-3) |
| Chipset |
| Intel® C612 Chipset |
| System Memory |
| 16 DIMM slots across 8 memory channels (4 memory channels per CPU; 2DPC) - 512GB DDR4 2133/1866 RDIMM DRx4 - 128GB DDR4 2133/1866 RDIMM SRx4 - 1024GB DDR4 2133/1866 LRDIMM QRx4 - 2048GB DDR4 2133/1866 LRDIMM 3DS 8Rx4 |
| Front Panel |
| Power on/off System reset 2 x USB 3.0 Type A connectors |
| LEDs |
| Power Alert LAN Drive |
| Drive Bays |
| External : 36 x 3.5” hot swap Internal : 2 x 2.5” |
| Backplane |
| Options : 1 x 24 port 12Gb SAS backplane with 36-PHY expander and 3 SFF-8643 connectors |
| Expansion Slots (PCIe 3.0) |
| 2 x16 + 1 x16 (x8 mode) + 3 x8 (all LP) |
| System BIOS |
| BIOS Type : Insyde UEFI BIOS SPI (Serial Peripheral Interface) FLASH Interface |
| BIOS Features : ACPI PXE WOL AC loss recovery IPMI 2.0 KCS interface SMBIOS Serial console redirection BIOS Boot Specification BIOS Recovery Mode SRIOV iSCSI TPM PCIe NTB |
| On-board Devices |
| SATA : Built-in SATA controller with RAID support on Intel® C612 Chipset 8x 7pin SATA connectors 1x M.2 with SATA/PCIe X2 support |
| IPMI : Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor Baseboard Management Controller Intelligent Platform Interface 2.0 (IPMI 2.0) iKVM, Media Redirection, IPMI over LAN, Serial over LAN SMASH Support |
| Network Controller : Intel® Ethernet Controller X540-BT2 dual port 10 GbE, 10GBASE-T, PCIe v2.1, x8 [Or Intel® Ethernet Controller I350-AM2, dual port GbE, PCIe v2.0 (co-lay with Intel® X540-BT2). MOQ required.] Intel® Ethernet Controller I210-AT, single port GbE controller, PCIe v2.1, 2.5 GT/s, x1 Intel® Ethernet Network Connection I217-LM, single port GbE, 1Gbps Realtek® RTL8201EL single port 10/100 Mbps Ethernet PHYceiver for dedicated BMC port |
| Graphics : Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor PCIe VGA/2D Controller 1920x1200@60Hz 32bpp |

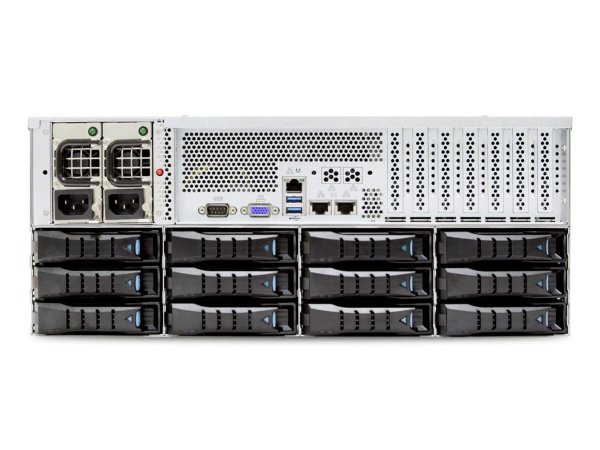

| Rear I/O |
| 2 x RJ45 1 x RJ45 (dedicated BMC port) 2 x RJ45 cabled from two internal 2x5 box pin-header (optional accessory) 2 x USB 3.0 Type A 1 x VGA 1 x Serial |
| Power Supply |
| 1200W 1+1 redundant PSU 80+ Platinum 100-240VAC, 47-63 Hz |
| System Cooling |
| Middle : 3 x 80x38 PWM hot swap fans |
| System Management |
| IPMI 2.0 KVM over IP Media redirection Temperature, fan, voltage, PSU sensor monitor System temperature System ID / System fail indicator Remote power on/off/reset SEL message alarm through mail SNMP support Intel NM |
| Environmental Specifications |
| Operating temperature : 0° - 35°C Operating altitude condition : 0 ~ 10K feet Storage temperature : -20° ~ 60°C System relative humidity : 5% - 95% (38°C) non-condensing |
| Gross Weight (w/PSU & Rail) |
| kgs : 40.4 lbs : 89 |
| Packaging Dimensions (W x D x H) |
| mm : 610 x 920 x 380 inches : 24 x 36.2 x 15 |
| Mounting |
| Standard : 26" tool-less slide rail |
