AIC SB302-LB without both Dual 10GbE IOC-3008
- Категории: Серверные платформы
- Производитель: AIC
2728,5
$

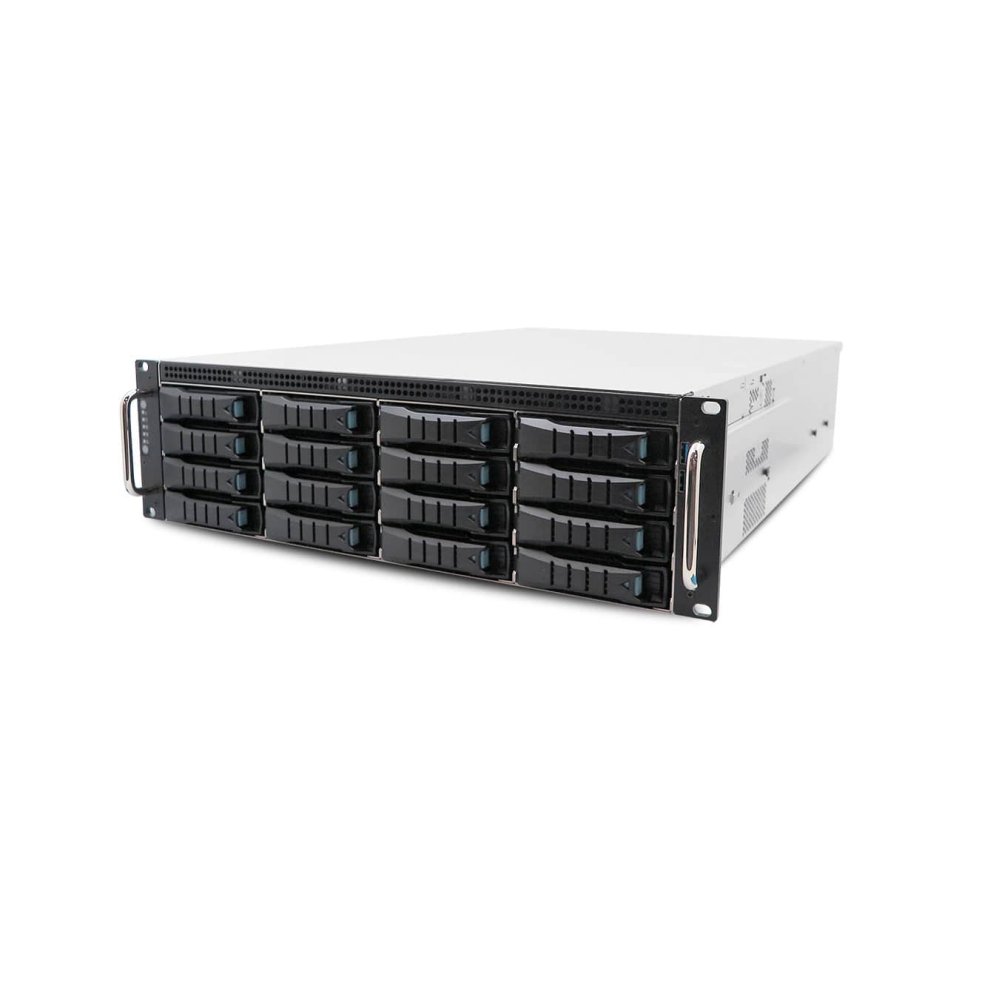

SB302-LB, a 3U 16-Bay Storage Server Solution, supports dual Intel® Xeon® Processors E5-2600 v3 and v4 product family. It has 16 x 3.5” and 2 x 2.5” hot swap drive bays. SB302-LB supports up to 6 PCIe 3.0 slots utilizing 64 lanes.
3U 16-Bay storage server
Supports two Intel® Xeon® Processors E5-2600 v3 and v4 product family
With Intel® C612 Series Chipset to provide 5+ years product life cycle
Onboard Baseboard Management Controller for system management and IPMI control
Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
Two 10 GbE RJ45 ports
| Dimensions (W x D x H) (with chassis ears) |
| mm : 483 x 645 x 132 inches : 19 x 25.4 x 5.2 |

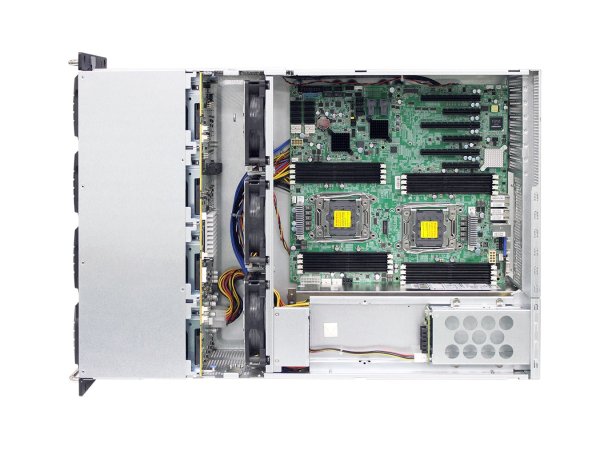

| Motherboard |
| AIC Server Board Libra |
| Processor |
| Processor Support : Two Intel® Xeon® Processors E5-2600 v3 and v4 product family |
| QPI Speeds : 9.6 GT/s, 8 GT/s, 7.2 GT/s |
| Socket Type : Socket R3 (FCLGA2011-3) |
| Chipset |
| Intel® C612 Chipset |
| System Memory |
| 16 DIMM slots across 8 memory channels (4 memory channels per CPU; 2DPC) - 512GB DDR4 2133/1866 RDIMM DRx4 - 128GB DDR4 2133/1866 RDIMM SRx4 - 1024GB DDR4 2133/1866 LRDIMM QRx4 - 2048GB DDR4 2133/1866 LRDIMM 3DS 8Rx4 |

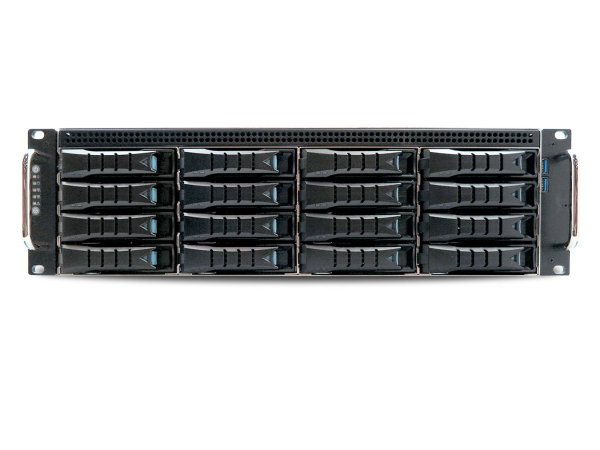

| Front Panel |
| Power on/off System ID System reset NMI button 2 x USB |
| LEDs |
| Power System ID Alert LAN Drive |
| Drive Bays |
| External : 16 x 3.5” hot swap Choose 1 : External : 2 x 2.5” hot swap Internal : 2 x 2.5” internal |
| Backplane |
| Options : 1 x 16-port 12Gb SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors 1 x 16-port 12Gb SAS backplane with 4 SFF-8643 connectors |
| Expansion Slots (PCIe 3.0) |
| 2 x16 + 1 x16 (x8 mode) + 3 x8 |
| System BIOS |
| BIOS Type : Insyde UEFI BIOS SPI (Serial Peripheral Interface) FLASH Interface |
| BIOS Features : ACPI PXE WOL AC loss recovery IPMI 2.0 KCS interface SMBIOS Serial console redirection BIOS Boot Specification BIOS Recovery Mode SRIOV iSCSI TPM PCIe NTB |
| On-board Devices |
| SATA : Built-in SATA controller with RAID support on Intel® C612 Chipset |
| IPMI : Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor Baseboard Management Controller Intelligent Platform Interface 2.0 (IPMI 2.0) iKVM, Media Redirection, IPMI over LAN, Serial over LAN SMASH Support |
| Network Controller : Intel® Ethernet Controller X540-BT2 dual port 10 GbE, 10GBASE-T, PCIe v2.1, x8 [Or Intel® Ethernet Controller I350-AM2, dual port GbE, PCIe v2.0 (co-lay with Intel® X540-BT2). MOQ required.] Intel® Ethernet Controller I210-AT, single port GbE controller, PCIe v2.1, 2.5 GT/s, x1 Intel® Ethernet Network Connection I217-LM, single port GbE, 1Gbps Realtek® RTL8201EL single port 10/100 Mbps Ethernet PHYceiver for dedicated BMC port |
| Graphics : Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor PCIe VGA/2D Controller 1920x1200@60Hz 32bpp |

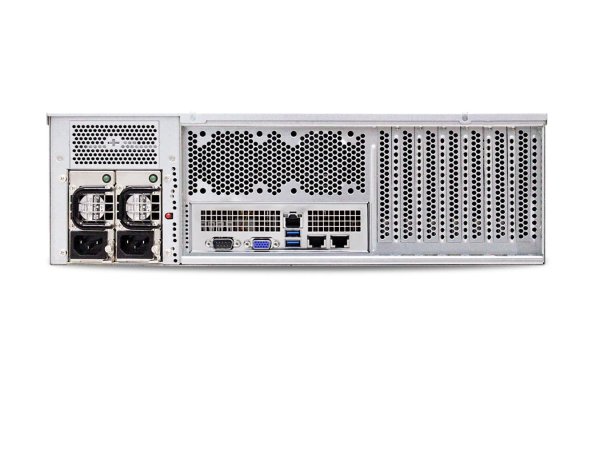

| Rear I/O |
| 3 x RJ45 (1 for BMC) 2 x USB 3.0 1 x VGA 1 x Serial (& optional 2 x RJ45) |
| Power Supply |
| 800W 1+1 redundant PSU 80+ Gold |
| System Cooling |
| Middle : 3 x 80x38 PWM & low power hot swap fans |
| System Management |
| IPMI 2.0 KVM over IP Media redirection Temperature, fan, voltage, PSU sensor monitor System temperature System ID / System fail indicator Remote power on/off/reset SEL message alarm through mail SNMP support Intel NM |
| Environmental Specifications |
| Operating temperature : 0° - 35°C Operating altitude condition : 0 ~ 10K feet Storage temperature : -20° ~ 60°C System relative humidity : 5% - 95% (38°C) non-condensing |
| Gross Weight (w/PSU & Rail) |
| kgs : 32 lbs : 70.4 |
| Packaging Dimensions (W x D x H) |
| mm : 590 x 850 x 335 inches : 23.2 x 33.5 x 13.2 |
| Mounting |
| Standard : 28" tool-less slide rail |
