Описание
Thunderbolt 2 DAS - внешний накопитель с поддержкой 8 SATA/SAS 3.5" HDD/SSD, резервного питания, расширения до трех внешних корзин JBOD и встроенным RAID-контроллером.
Свойства
Performance
Enable staggering Thunderbolt 2 transfer speeds of up to 1300 MB/s, meaning your storage solution can keep pace with your workflow.
Thunderbolt 2
The 8-bay desktop model created specially for Thunderbolt 2.

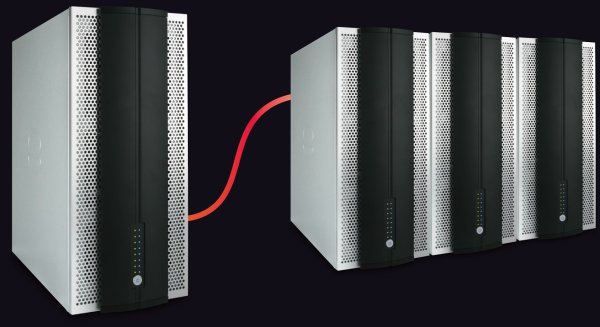

JBOD Expansion
As your business grows, so does the need for storage. Not an issue with the T-DAS.
Capacity
With a capacity of up to 80 TB, equip your desktop with a massive vault for your data.
OS Compatible
Enjoy seamless compatibility with Mac device.
*For Windows user, take a look at our A08S4-PS.
RAID Mode
Choose from 5 different RAID levels to suit the demands of your storage.
Quiet Fan
The T-DAS is equipped with an ultra-quiet fan for uninterrupted operation.
Warranty
We have you covered with a 3-year warranty and strong technical support team.
Power Supply
Rest assured that you will stay online with redundant power supply.
Спецификация
| System Type | 8-bay Tower RAID system |
| Host Interface | Thunderbolt 2 |
| Data Transfer Rate | 20 Gb/s |
| Disk Interface | SAS / SATA * 8 |
| Disk Type | 3.5" / 2.5" / SSD |
| RAID Level | 0, 1, 5, 6, 0+1, JBOD |
| Cache Memory | 2G DDRlll 1866 with ECC-protected |
| JBOD Expansion | JBOD * 3 |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -20°C~ 70°C |
| Operating Humidity | 5%~85%, Non-condensing |
| Storage Humidity | 5%~95% |
| RAID Controller Functions | - Online RAID Set Expansion and RAID LEVEL Migration
- Online bad block data recovery and reallocation
- Online disk scrubbing with data refresh and parity
- Disk health monitorning by S.M.A.R.T
- Array Roaming and Drive Traveling
- Mirror Snapshot for fast backup and restore
- Disk Lag Proof Technology to guarantee disk timely response
- Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation
|
| Management | - Java-based RADIGuard X GUI
- Event log saving in text file for quick trobleshooting
- Event notification by email (SMTP)
- LED indicator for RAID & disk drives status in front
- 400W (Single or Redundant). 110V~240V power supply
- Two 12cm x 12 cm Fan with Smart Fan Control feature
|
| Power Supply | 400W (Single or Redundant). 110V~240V ATX power supply |

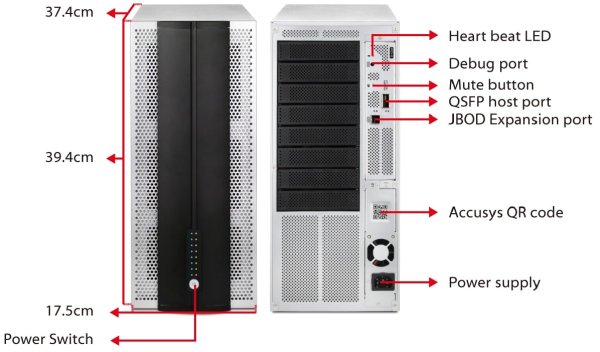

| Dimensions | L:369mm, W:175mm, H:394.6mm |
| Weight | 13.64kg / 30bs |
