| General |
| Number of Expander : Single/Dual |
| Expander Chip : LSI SAS3x36R |

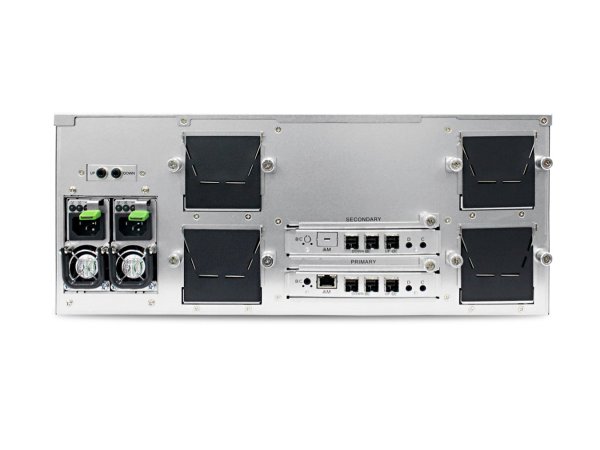

| Host/Expansion Interface : 3 x Mini SAS HD (SFF-8644) per expander module |
| Drives Supported |
Drive Interface :
12Gb & 6Gb SAS if using dual expanders
12Gb & 6Gb SAS/SATA if using single expander
(Interposer kits are optional) |
| Form Factor : 3.5” |
| Administration / Management |
Admin/Firmware Upgrade :
In-band & Serial port interface
Intelligent Enclosure Management port (optional) |
| LED Indicators, Audible Alarm : Yes |
| Hot swap & Redundancy |

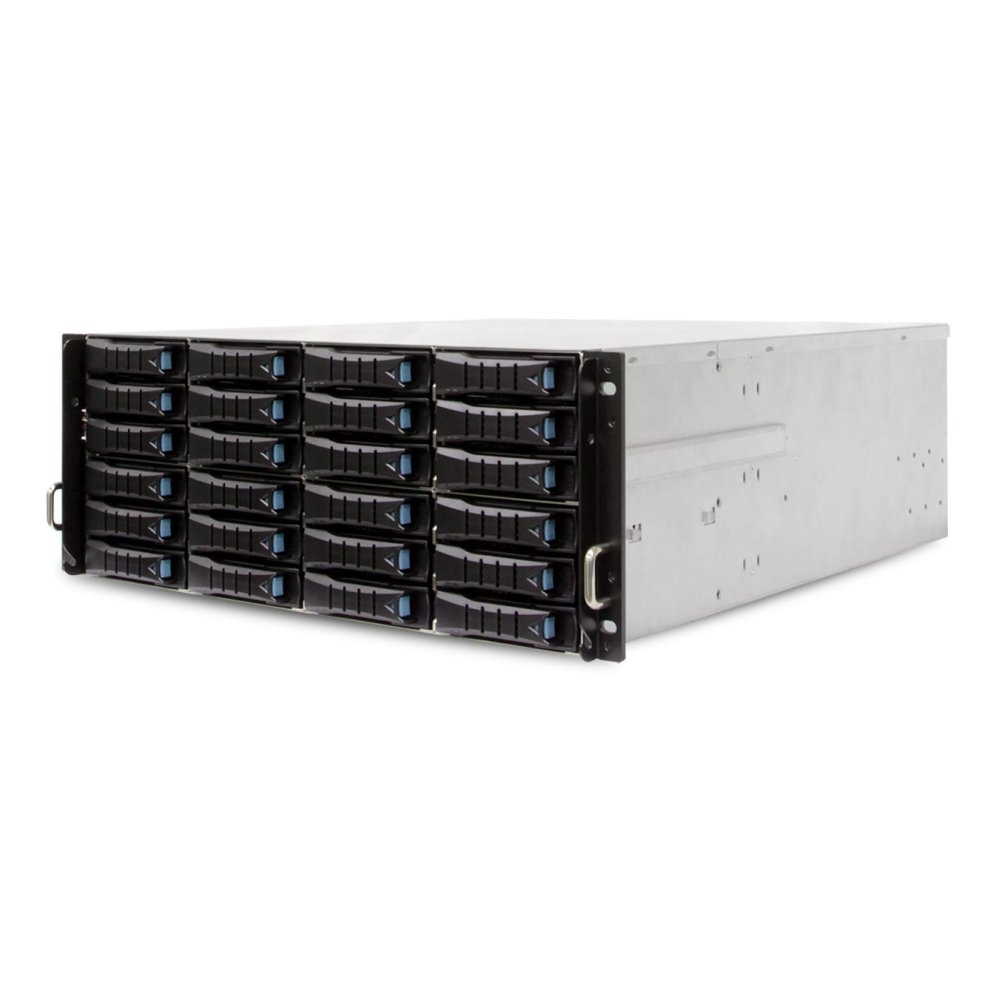

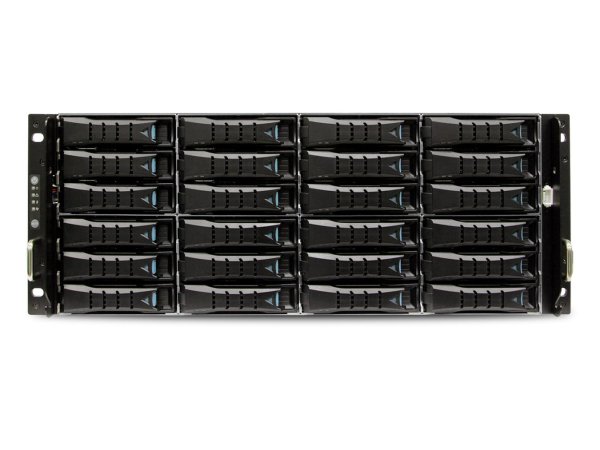

| Disk Drive : Hot swap 24-bay |
| Cooling : 4 x 6038 hot swap fans |
| Power Supply : 549W 1+1 hot-swap redundant 80+ Platinum |
| Power Entry : Dual AC Inlet |
| Expander Modules : Dual expanders (Optional) |
| Electrical & Environment |
| Universal A/C Input : 100~240V AC full range |
Operating Environment :
Temperature 0?C to 35?C
Relative humidity 20% to 80% |
Non-operating Environment :
Temperature -20?C to 60?C
Relative humidity 10% to 90% |
| Physical Specification |
Dimensions (W x D x H) (with chassis ears) :
mm : 483 x 534 x 174.4
inches : 19 x 21 x 6.9 |
Gross Weight (w/ PSU; w/o Rail & Disks) :
kgs : 29
lbs : 63.9 |
Packaging Dimension (W x D x H) :
mm : 591 x 851 x 378
inches : 23.2 x 33.5 x 14.9 |
Mounting :
Standard : Adjustable plate
Option : 20” tool-less rail
(For North America, 20” tool-less rail is the standard. Adjustable plate is not included.) |
