AIC J4024-01

 aic j4024-01
2397 $

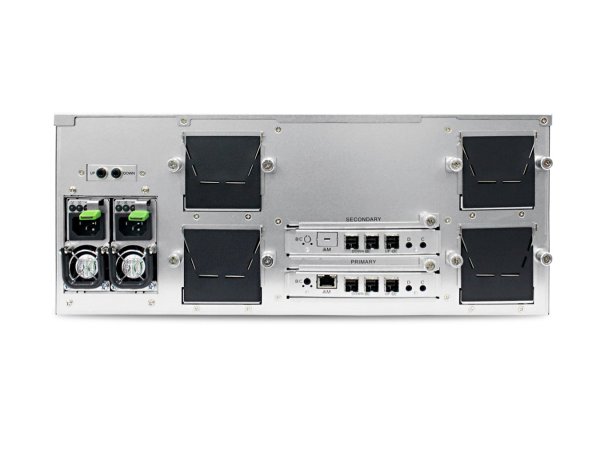

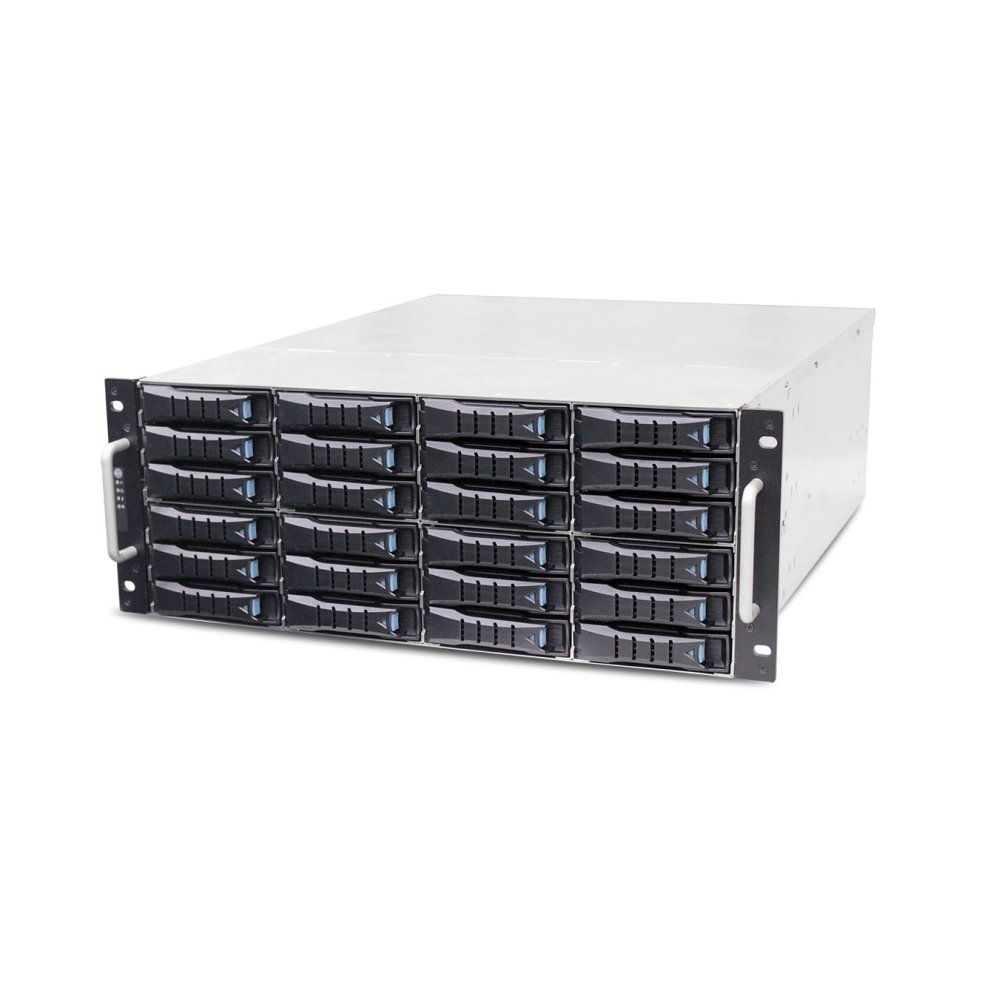

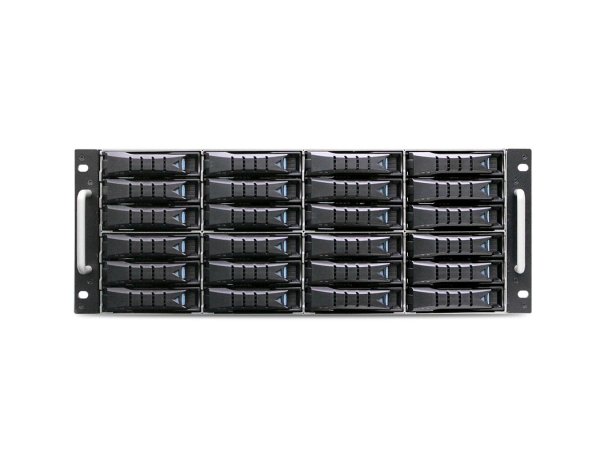

J4024-01, a 4U 24-Bay SAS 12G JBOD, housing single/dual expander (field upgradable) modules, four fans and redundant power supply in short-depth design provides full redundancy and high availability for critical, performance driven storage demand. The combination of LSI expander chip and AIC`s own firmware is a guarantee of compatibility with most mainstream hard drives, HBAs and RAID controllers (SAS2/SAS3).

Intelligent Enclosure Management
Individual drive power management
Cutting edge performance and scalability
Expander Self-discovery/Self-configuration
(connects Mini SAS port to host or expansion)
Supports SES-2 (SCSI Enclosure Service)
Hot swap design for easy maintenance and management
Tool-less drive trays (come with screw holes to adapt to 2.5” drives)
Adjustable Thermal Profile
Easy deployment

General

Number of Expander : Single/Dual

Expander Chip : LSI SAS3x36R

Host/Expansion Interface : 3 x Mini SAS HD (SFF-8644) per expander module

Drives Supported

Drive Interface :
12Gb & 6Gb SAS if using dual expanders 12Gb & 6Gb SAS/SATA if using single expander

Form Factor : 3.5”

Administration / Management

Admin/Firmware Upgrade :
In-band & Serial port interface Intelligent Enclosure Management port (optional)

LED Indicators, Audible Alarm : Yes

Hot swap & Redundancy

Drive Bays : 24

Cooling : 4 x 6038 hot swap fans

Power Supply : 549W 1+1 hot-swap redundant 80+ Platinum

Power Entry : Dual AC Inlet

Expander Modules : Dual expanders (Optional)

Electrical & Environment

Universal A/C Input : 100~240V AC full range

Operating Environment :
Temperature 0?C to 35?C Relative humidity 20% to 80%

Non-operating Environment :
Temperature -20?C to 60?C Relative humidity 10% to 90%

Physical Specification

Dimensions (W x D x H) (with chassis ears) :
mm : 483 x 534 x 174.4 inches : 19 x 21 x 6.9

Gross Weight (w/ PSU; w/o Rail & Disks) :
kgs : 29 lbs : 63.9

Packaging Dimension (W x D x H) :
mm : 591 x 851 x 378 inches : 23.2 x 33.5 x 14.9

Mounting :
Standard : Adjustable plate Option : 20” tool-less rail (For North America, 20” tool-less rail is the standard. Adjustable plate is not included.)

?
