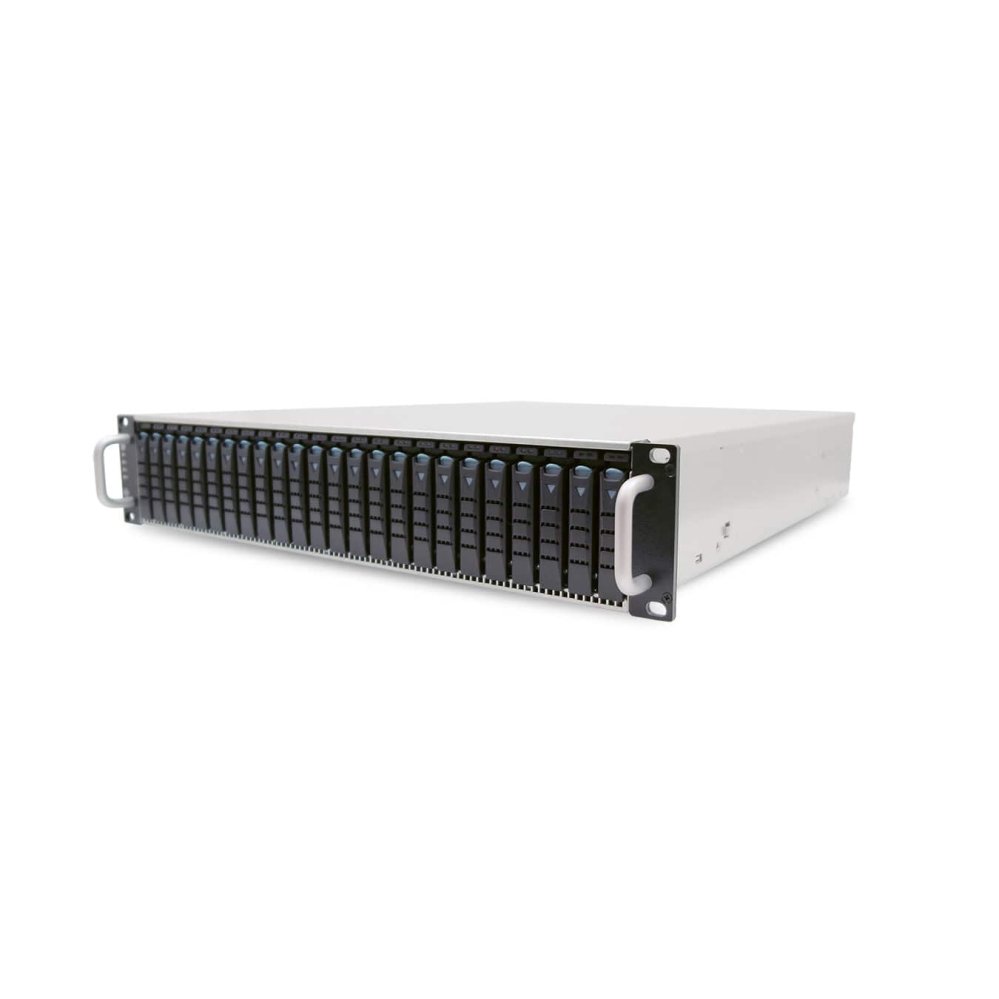

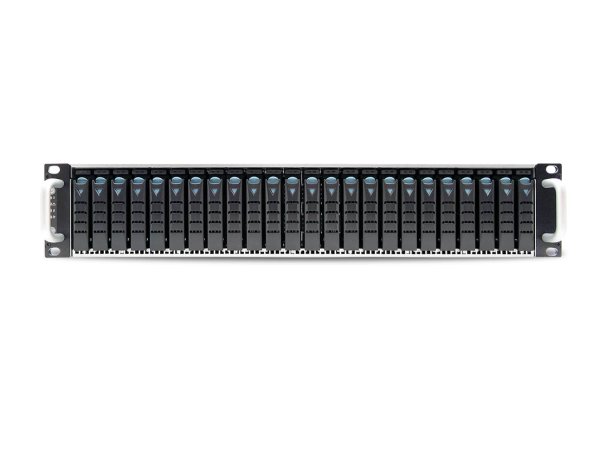

J2024-01, a 2U 24 SFF Bay SAS 12G JBOD with optional interposer compatible trays, housing single/dual expander modules, dual fans and redundant power supply in short-depth design provides full redundancy and high availability for critical, performance driven storage demand. The combination of LSI expander chip and AIC`s own firmware is a guarantee of compatibility with most mainstream hard drives, HBAs and RAID controllers (SAS2/SAS3). Intelligent Enclosure Management Individual drive power management Cutting edge performance and scalability Expander Self-discovery/Self-configuration(connects Mini SAS port to host or expansion) Drive trays support interposers Supports SES-2 (SCSI Enclosure Service) Hot swap design for easy maintenance and management Adjustable Thermal Profile Easy deployment General |
Number of Expander : Single/Dual |
Expander Chip : LSI SAS3x36R |
Host/Expansion Interface : 3 x Mini SAS HD (SFF-8644) per expander module |
Drives Supported |
Drive Interface :
12Gb & 6Gb SAS if using dual expanders 12Gb & 6Gb SAS/SATA if using single expander (Interposer kits are optional) |
Form Factor : SFF 2.5” |
Administration / Management |
Admin/Firmware Upgrade :
In-band & Serial port interface Intelligent Enclosure Management port (optional) |
LED Indicators, Audible Alarm : Yes |
Hot swap & Redundancy |
Drive Bays : 24 |
Cooling : 2 x 6038 hot swap fans |
Power Supply : 549W 1+1 hot-swap redundant 80+ Platinum |
Power Entry : Dual AC Inlet |
Expander Modules : Dual expanders (Optional) |
Electrical & Environment |
Universal A/C Input : 100~240V AC full range |
Operating Environment :
Temperature 0?C to 35?C Relative humidity 20% to 80% |
Non-operating Environment :
Temperature -20?C to 60?C Relative humidity 10% to 90% |
Physical Specification |
Dimensions (W x D x H) (with chassis ears) :
mm : 483 x 511 x 88 inches : 19 x 20 x 3.5 |
Gross Weight (w/ PSU; w/o Rail & Disks) :
kgs : 23 lbs : 51 |
Packaging Dimension (W x D x H) :
mm : 600 x 810 x 278 inches : 23.6 x 31.9 x 11 |
Mounting :
Standard : Adjustable plate Option : 20” tool-less rail (For North America, 20” tool-less rail is the standard. Adjustable plate is not included.) |
?
