Серверный корпус AIC J2012-01

Код товара: 74720
Артикул: SSG-JBSA31S-2123T-55RP-A
Под заказ https://schema.org/BackOrder
79790 грн.
+
-
Доставка
  • Самовывоз по адресу Нагорная 27Б
  • Доставка курьером по Киеву
  • «Новой Почтой» по Украине
Оплата
  • Оплата на сайте
  • Оплата наличными в офисе или курьеру
  • Наложенный платеж

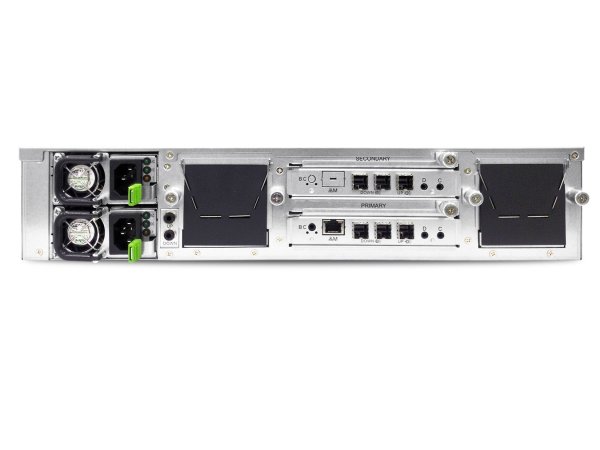

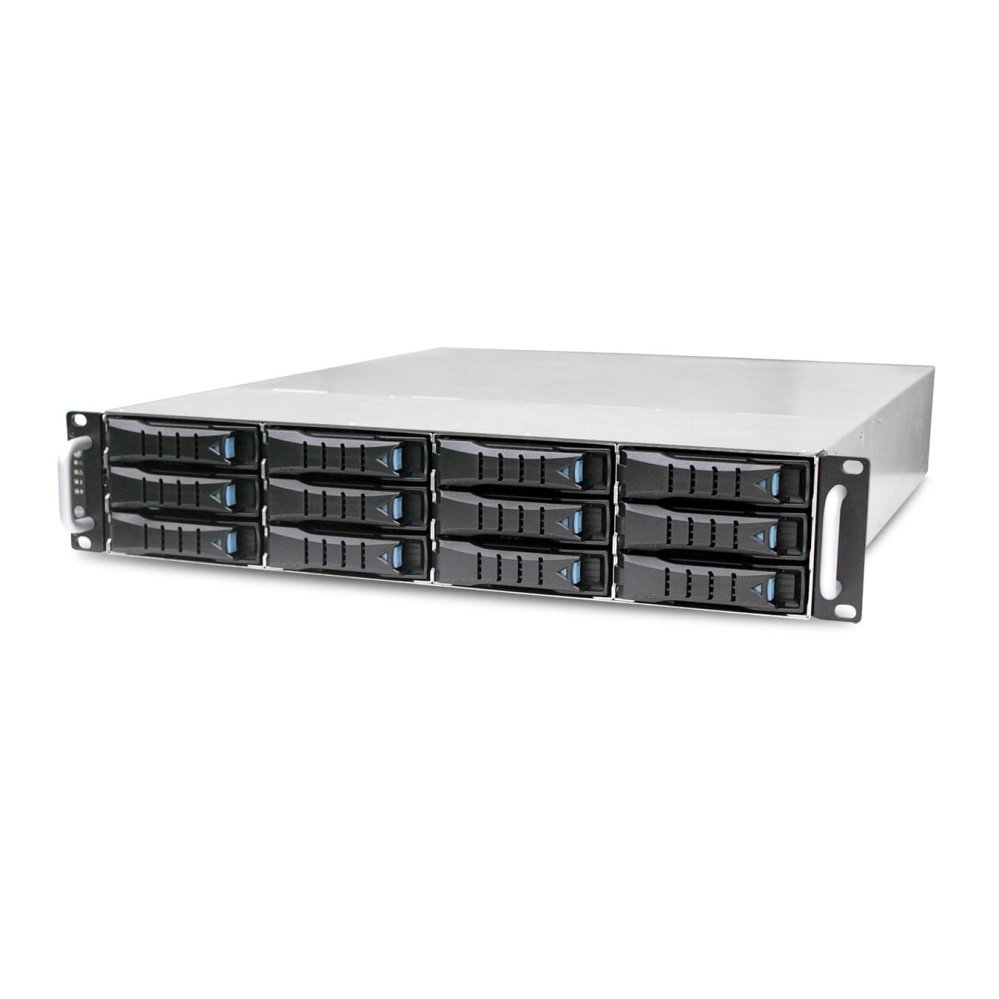

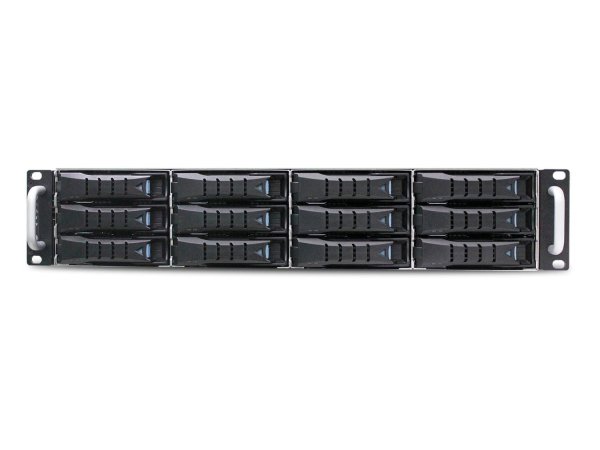

J2012-01, a 2U 12-Bay SAS 12G JBOD, housing single/dual expander (field upgradable) modules, dual fans and redundant power supply in short-depth design provides full redundancy and high availability for critical, performance driven storage demand. The combination of LSI expander chip and AIC`s own firmware is a guarantee of compatibility with most mainstream hard drives, HBAs and RAID controllers (SAS2/SAS3).
General
Number of Expander : Single/Dual
Expander Chip : LSI SAS3x28R
Host/Expansion Interface : 3 x Mini SAS HD (SFF-8644) per expander module
Drives Supported
Drive Interface :
12Gb & 6Gb SAS if using dual expanders
12Gb & 6Gb SAS/SATA if using single expander
Form Factor : 3.5”
Administration / Management
Admin/Firmware Upgrade :
In-band & Serial port interface
Intelligent Enclosure Management port (optional)
LED Indicators, Audible Alarm : Yes
Hot swap & Redundancy
Drive Bays : 12
Cooling : 2 x 6038 hot swap fans
Power Supply : 549W 1+1 hot-swap redundant 80+ Platinum
Power Entry : Dual AC Inlet
Expander Modules : Dual expanders (Optional)
Electrical & Environment
Universal A/C Input : 100~240V AC full range
Operating Environment :
Temperature 0?C to 35?C
Relative humidity 20% to 80%
Non-operating Environment :
Temperature -20?C to 60?C
Relative humidity 10% to 90%
Physical Specification
Dimensions (W x D x H) (with chassis ears) :
mm : 483 x 534 x 88.2
inches : 19 x 21 x 3.5
Gross Weight (w/ PSU; w/o Rail & Disks) :
kgs : 22.1
lbs : 46.3
Packaging Dimension (W x D x H) :
mm : 595 x 785 x 278
inches : 23.4 x 30.9 x 10.9
Mounting :
Standard : Adjustable plate
Option : 20” tool-less rail
(For North America, 20” tool-less rail is the standard. Adjustable plate is not included.)
