AIC RSC-4H

 aic rsc-4h
4712,4 $

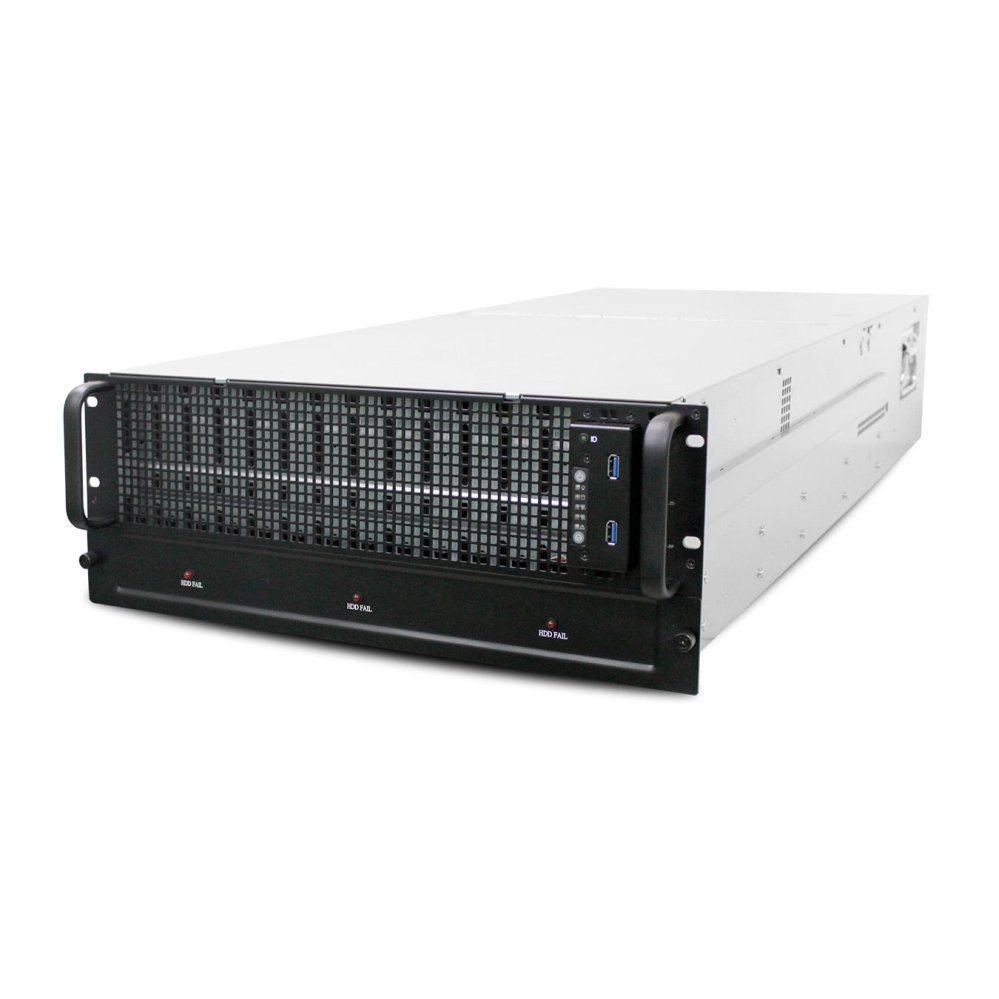

RSC-4H is a 4U 60-Bay high density storage server chassis with tool-less design features. Unlike typical 4U server chassis which accommodate 24 or 36 drives, RSC-4H supports 60 top-loading 3.5” drive trays to save rack space and lower power consumption. It is suitable for cold storage which requires the capacity for vast amount of data but allows slower data retrieval and response time. Some suitable applications include media storage, medical imaging, email archiving, public or private cloud storage and data warehousing. Too-less features on drive trays, top cover and backplane sliding mechanism make assembly and maintenance quick and easy.

High density storage server chassis
Tool-less design for easy maintenance:

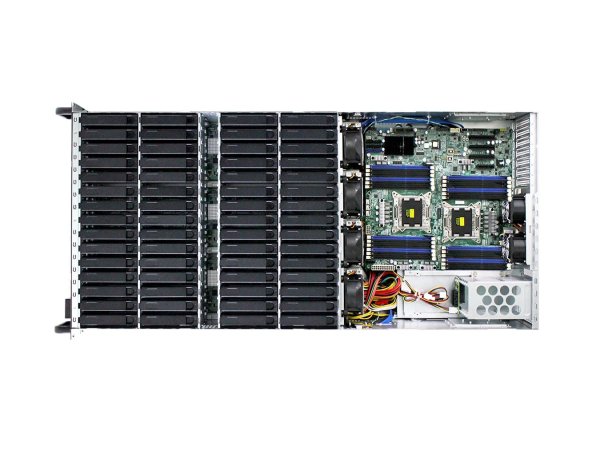

- 60 tool-less top-loading 3.5” drive trays with built-in light pipe for drive status LED
- Tool-less top cover
- Tool-less drive backplane sliding mechanism
Hot swap cooling fans and 80+ redundant power supply
Supports up to 6 x 2.5” hot swap drives for OS or data cache
Supports single drive power cycle setting
Dimensions (W x D x H) (with chassis ears)
mm : 483 x 950 x 176
inches : 19 x 37.4 x 6.9
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SPGC cold-rolled steel
Color
Front Panel : Black
Cooling
Middle : 4 x 80x38mm PWM & low-power consumption hot swap fans

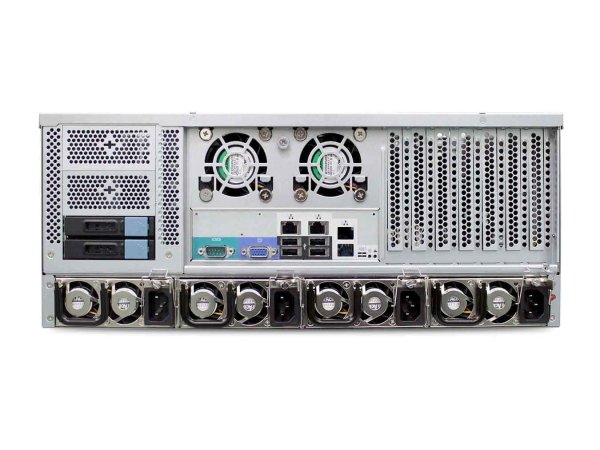

Rear : 2 x 60x38mm PWM easy swap fans
Power Supply
Standard : 1890W 3+1 redundant PSU 80+ Silver
Option : 1400W 1+1 redundant PSU 80+ Platinum
Expansion Slots
7 full height
Front Panel
System power on/off
System reset
2 x USB 3.0 ports
LED Indicators
System Power
LAN
Drive
Alert
System Board
12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Drive Bays
External : 2 x 2.5” hot swap (up to 6 if using 1890W PSU)
Internal : 60 x 3.5” hot swap
Backplanes
3 x 20-port 6Gb SAS backplanes with 28-PHY expander and 2 SFF-8087 connectors on each
Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (w/ PSU & Rail) (excluding pallet)
kgs : 47
lbs : 103.6
Package Dimension (W x D x H)
mm : 593 x 1121 x 386
inches : 23.3 x 44.1 x 15.2
Cubic Feet
8.8
Container Load Quantity
20’ : 97
40’ : 199
40’ H : 240
Mounting
Standard : 25” tool-less slide rail
