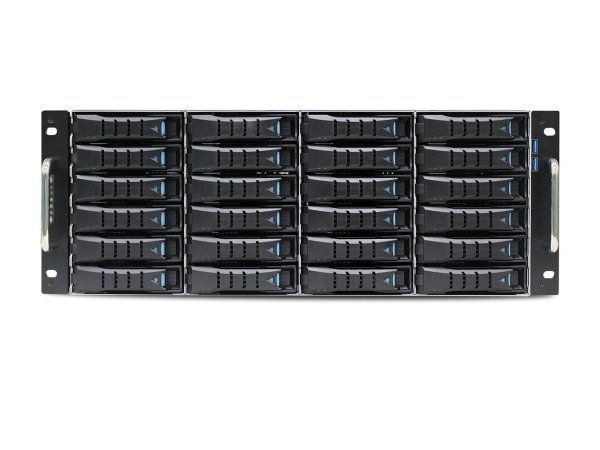

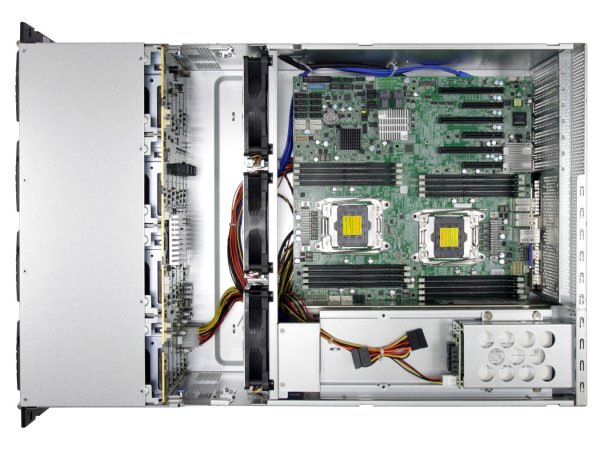

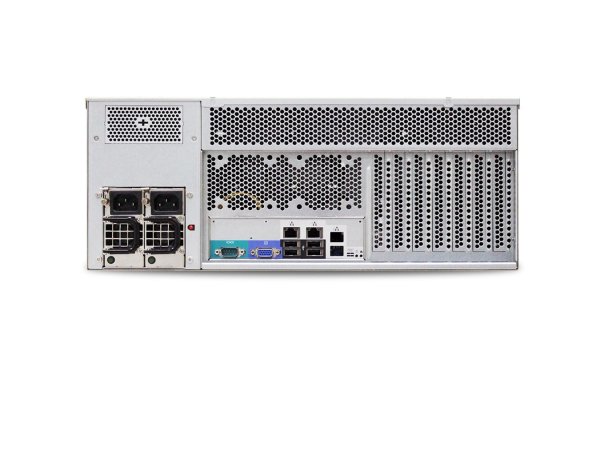

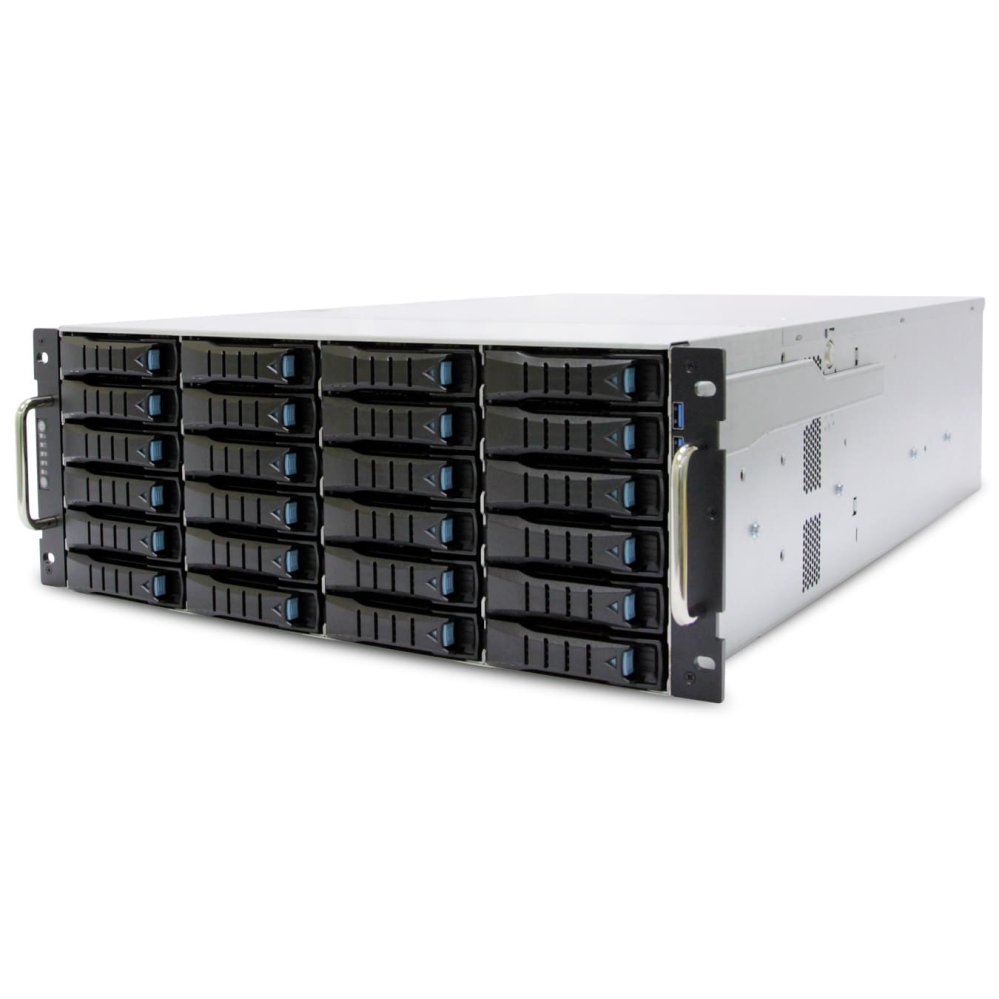

AIC RSC-4ET

 aic rsc-4et
1890,4 $

RSC-4ET is a T series 4U 24-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the RSC-4ET supports quick installation and easy maintenance. This tool-less design solution also features 3 x hot swap fans designed to minimize rotational vibration and SPGC pre-plated steel with minimal paint, offering a cost-effective solution ideally suited for a broad range of applications.

Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
12Gb/s SAS expander chip on backplane
Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
Two front access USB 3.0 ports
Comes with a 80+ Platinum redundant PSU
Dimensions (W x D x H) (with chassis ears)
mm : 483 x 680 x 176
inches : 19 x 26.8 x 6.9
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SPGC cold-rolled steel
Color
Front Panel : Black
Cooling
Middle : 3 x 120x25mm PWM hot swap fans
Power Supply
1200W 1+1 redundant PSU 80+ Platinum
Expansion Slots
7 full height
Front Panel
Power on/off
System reset
2 x USB 3.0 port
LED Indicators
Power
LAN
Drive
Alert
System Board
12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Drive Bays
External : 24 x 3.5” hot swap
Choose 1 :
Internal : 2 x 2.5”
External : 2 x 2.5” hot swap
Backplane
1 x 24-port 12Gb SAS backplane with 36-PHY expander chip and 3 SFF-8643 connectors
Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (w/ PSU & Rail)
kgs : 37
lbs : 81.6
Package Dimension (W x D x H)
mm : 590 x 885 x 373
inches : 23.2 x 34.8 x 14.7
Cubic Feet
6.56
Container Load Quantity
20’ : 145
40’ : 298
40’ H : 358
Mounting
Standard : 28” tool-less slide rail
