AIC RSC-2AT

 aic rsc-2at
2177,7 $

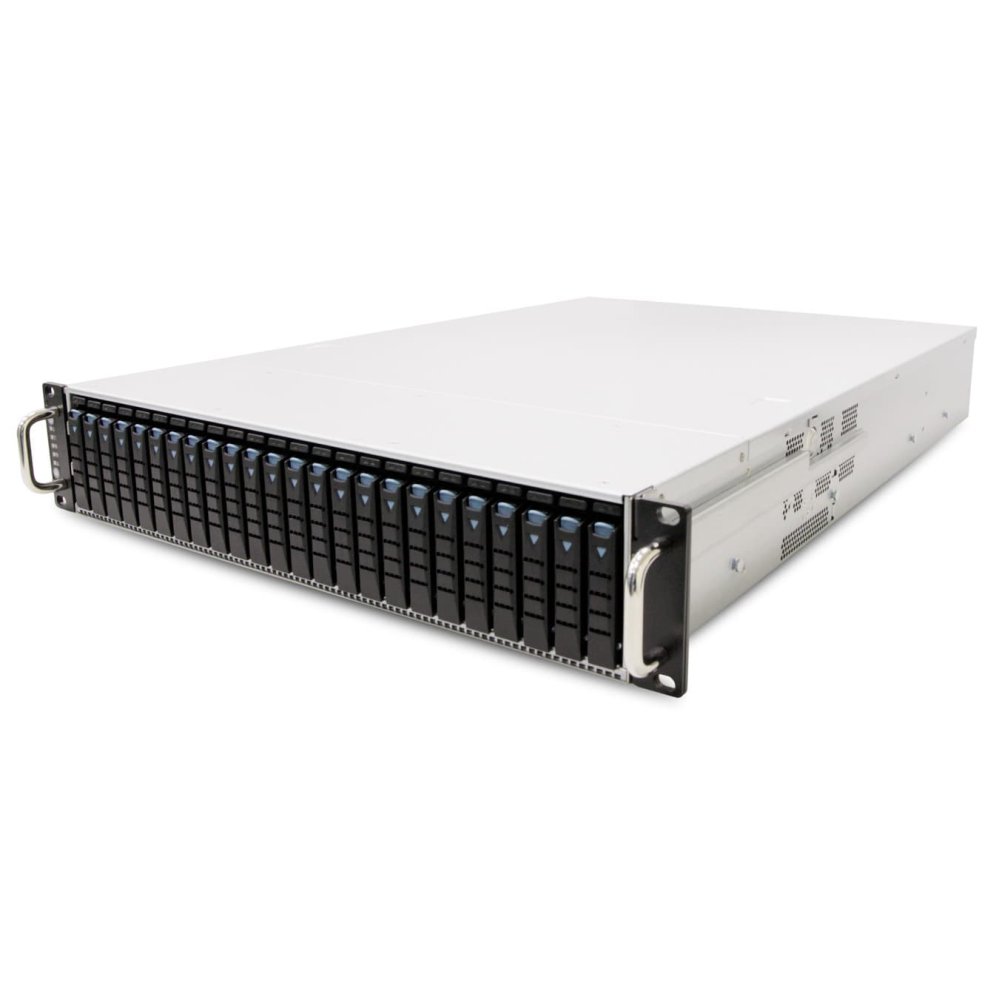

RSC-2AT is a T series 2U 24-bay SAS/SATA storage server chassis. With its tool-less 2.5" hard drive/SSD carriers, top covers and backplane, the RSC-2AT supports quick installation and easy maintenance. This tool-less design solution also features 3 x low-power consumption hot swap fans and SPGC pre-plated steel with minimal paint, offering a cost-effective solution ideally suited for a broad range of applications.

Tool-less design supports quick installation and easy maintenance:
- Tool-less 2.5” drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
12Gb/s SAS expander chip on backplane

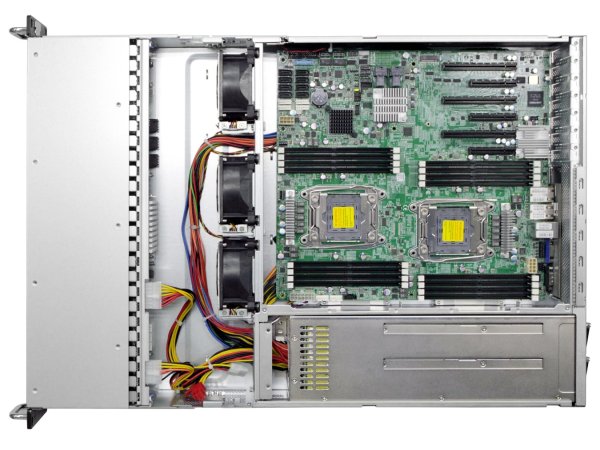

Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
Comes with a 80+ Platinum redundant PSU
Dimensions (W x D x H) (with chassis ears)
mm : 483 x 680 x 88
inches : 19 x 26.8 x 3.5
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SPGC cold-rolled steel
Color
Front Panel : Black
Cooling
Standard :
Middle : 3 x 80x38mm PWM & low-power consumption hot swap fans
Power Supply
Standard :
800W 1+1 redundant PSU PMBus 1.2 80+ Platinum
Option :
650W 1+1 redundant PSU PMBus 1.2 80+ Gold
Expansion Slots
7 low-profile
Front Panel
Power on/off
System reset
1 x USB 3.0 port
LED Indicators
Power
LAN
Drive
Alert
System Board
12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Drive Bays

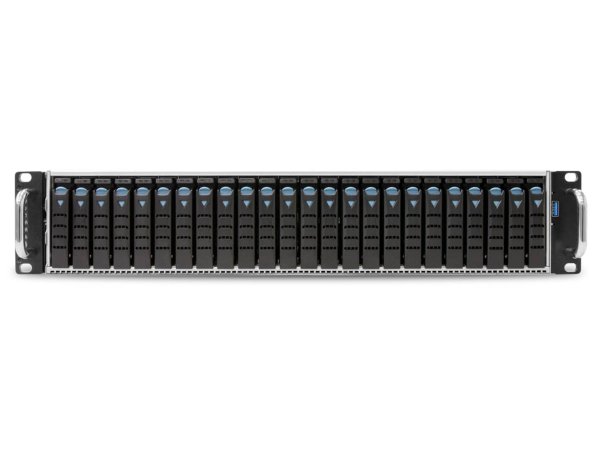

External : 24 x 2.5” hot swap
Internal : 2 x 2.5”
Backplane
Options :
1 x 24-port 12Gb SAS backplane with 6 SFF-8643 connectors
1 x 24-port 12Gb SAS backplane with a 36-PHY expander chip and 3 SFF-8643 connectors
Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (w/ PSU & Rail)
kgs : 24.5
lbs : 54
Package Dimension (W x D x H)
mm : 590 x 850 x 290
inches : 23.2 x 33.5 x 11.4
Cubic Feet
5.14
Container Load Quantity
20’ : 185
40’ : 380
40’ H : 457
Mounting
Standard : 28” tool-less slide rail
