| Dimensions (W x D x H) (with chassis ears) |
mm : 483 x 645 x 132
inches : 19 x 25.4 x 5.2 |
| Industry Standard |
| EIA-RS310D |
| Material |
| Heavy-duty preplated SPGC cold-rolled steel |
| Color |
| Front Panel : Black |
| Cooling |
| Middle : 3 x 80x38mm PWM & low-power consumption hot swap fans |

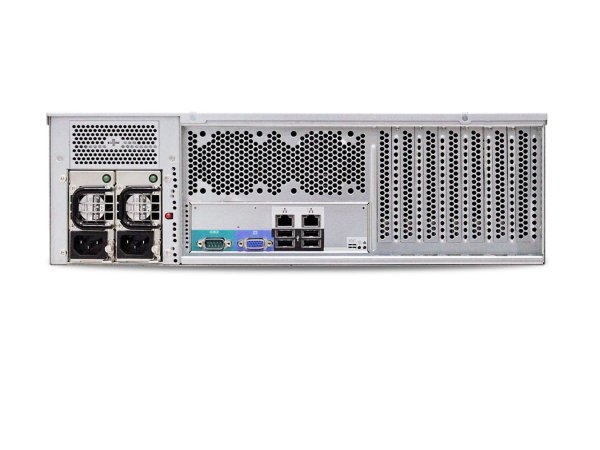

| Power Supply |
| 800W 1+1 redundant PSU PMBus 1.2 80+ Gold |
| Expansion Slots |
| 7 |

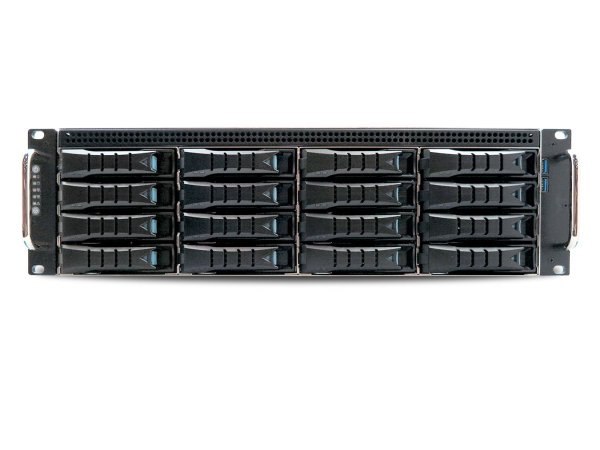

| Front Panel |
Power on/off
System reset
2 x USB 3.0 port |
| LED Indicators |
Power
LAN
Drive
Alert |

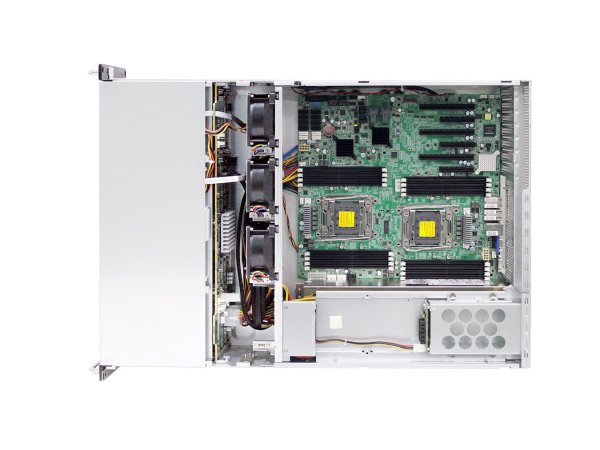

| System Board |
| 12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB |
| Drive Bays |
External : 16 x 3.5” hot swap
Choose 1 :
Internal : 6 x 2.5”
Internal : 4 x 2.5” + External : 2 x 2.5” hot swap
Internal : 4 x 2.5” + External : 1 x Slim DVD-ROM
Internal : 2 x 2.5” + External : 2 x 2.5” hot swap& 1 x Slim DVD-ROM |
| Backplane |
| 1 x 16-port 12Gb SAS backplane with 28-PHY expander and 3 SFF-8643 connectors |
| Storage Temperature |
| 0°C(32°F) ~ 50°C(122°F) |
| Humidity |
| 5% ~ 95% non-condensing |
| Gross Weight (w/ PSU & Rail) |
kgs : 32
lbs : 70.5 |
| Package Dimension (W x D x H) |
mm : 590 x 850 x 335
inches : 23.2 x 33.5 x 13.2 |
| Cubic Feet |
| 6.03 |
| Container Load Quantity |
20’ : 158
40’ : 323
40’ H : 390 |
| Mounting |
| Standard : 28” tool-less slide rail |
