Tiger Box - система хранения данных

Код товара: 73170
Под заказ https://schema.org/BackOrder
Цена по запросу
+
-
Доставка
  • Самовывоз по адресу Нагорная 27Б
  • Доставка курьером по Киеву
  • «Новой Почтой» по Украине
Оплата
  • Оплата на сайте
  • Оплата наличными в офисе или курьеру
  • Наложенный платеж

Система коллективного доступа к данным Tiger Box представляет собой современную, мощную, интегрированною интеллектуальною систему хранения данных(SAN), предназначенную для решения проблем рабочего процесса хранения в контент-ориентированных приложениях.

С помощью всего лишь нескольких щелчков мыши возможно создание мощной сети хранения данных с использованием соединений по выбору для коллективного доступа к метаданным среди пользователей и групп, а также совместной работы над проектами. Легкое управление SAN доступно с помощью простого веб-интерфейса, в это время само устройство Tiger Box будет управлять файловой системой и последовательностью дефрагментации для достижения максимальной производительности, продуктивности и безотказной работы.



Tiger Box is the ideal solution for:

  • Film colour grading, special FX and video editing workgroups
  • On-set 2K/4K film capture with instant dailies logging and editing
  • High-performance render farm
  • Surveillance and image acquisition
  • Scientific, pre-press, medical and satellite imaging analysis
  • Shared storage for rich media educational facilities
  • Alternative to Avid Unity/ISIS

Tiger Box Integrated Storage Workflow

Tiger Box Shared Storage Workflow System is a state of the art, powerful, integrated intelligent storage system designed to solve storage workflow challenges in content-centric applications.

With just a few clicks, create a powerful shared storage network, using the connection of your choice to share media and metadata among users and suites, and collaborate on projects. Easily manage your SAN with a simple web UI, and let Tiger Box handle file system and sequence defragmentation for maximum performance, productivity, and uptime.

Features & Capabilities

  • Complete, integrated appliance
  • Easy to setup, configure, and maintain
  • Use the creative apps you need, including Avid bin locking
  • Use a mix of Ethernet and Fibre connections
  • 24/7 email and phone support available and included for first year

Based on the Tiger Intelligent Shared Storage Workflow Engine, Tiger Box provides you with a complete Shared Storage Workflow system that accelerates rich media production. It includes storage, networking, sharing, project management, and life-cycle management capabilities. With a simple web UI and direct Ethernet and Fiber connectivity, Tiger Box makes it easy to setup shared storage workflows that let you focus on your work, not on system administration and maintenance.

Tiger Box offers the simplicity of NAS and the performance characteristics of a true SAN. The compact rack-mountable system combines a Metadata Master and highly optimized RAID (0, 5, 6) storage, comprised of 16 enterprise-class drives (drive capacity depends on specific configuration), which can be accessed by client computers via 8Gb or 16Gb Fibre Channel, 10Gb Ethernet and/or 1Gb Ethernet. The system is easily expandable to 384 TB with up to four Tiger Expansion chassis.

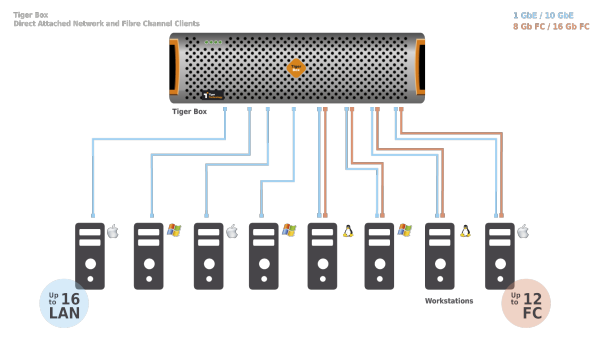

Tiger Box is in a class of its own when it comes to simplicity, performance and sophistication. To deploy Tiger Box in your facility you simply need to connect the computers to Tiger Box via 1Gb/10Gb Ethernet or 8Gb/16Gb Fibre Channel, then access Tiger Box via a web browser to download and install the client software.

Once you turn the appliance on, its RAID storage becomes instantly available to all connected clients. There’s no need to activate client licenses. The Tiger Box driver software ensures consistent and uninterrupted high-speed access, file arbitration and zoning.

All performance metrics, storage settings and statistics can be controlled/viewed by any computer through the web interface, which is accessible from any device on the same network with a web browser.

Using built-in projectStore you can create any number of virtual volumes with Avid bin locking capability. These volumes can then be mounted as local volumes on client computers for access by any and all creative applications.

If Tiger Box does not detect file activity for a few minutes, automatic defragmentation of the file system will kick in. As soon as Tiger Box detects activity, it stops defragmenting.

CHASSIS


Enclosure Form Factor3RU, 19” Rackmount Chassis with excellent anti-vibration mechanical design and thermal solution
Chassis Dimension25.5? (D) x 17.2? (W) x 5.2? (H)
647.7 mm (D) x 437 mm (W) x 132 mm (H)
Power ConsumptionMax 720 Watts
Power ConsumptionIdle 300 Watts
Ports1x USB 2.0
2x 1Gb Ethernet for MDC or remote access
Rackmount Kit27” Ball Bearing Slide
Expansion chassisDaisy chained 16x 3.5” JBOD via mini SAS
Fan Module4x 80 mm System Cooling Fan Modules
Power Supply UnitHigh-efficiency 720w (1+1) Redundant Hot Swappable Power Supply W/ PFCAC 100 ~ 240V Full Range, 50Hz ~ 60Hz
Shipping InformationWeight 46kg
Package Dimension565mm (D) ? 865mm (W) ? 445mm (H)
Temperature RangeOperating: 10?C~20?C (50?F~77?F)
Non-Operating: -40?C~70?C (-40?F~158?F)
Humidity Range20% ~60% Non-condensing



DATASTORE




RAID ControllerFull RAID performance in degraded modeCache safeguards information during power loss
Storage16x 3.5” Hot Swappable drives (1TB, 2TB, 3TB or 4TB)
Security AuthorityActive Directory with Mac and Windows users authentication
System Boot Drive2 x 2.5” RAID 1 (mirror)



CONNECTIVITY OPTIONS




Modules can be mixed within your Tiger Box configuration:



  • 16Gb/s Fibre Channel
  • 8Gb/s Fibre Channel
  • 10 Gb/s Ethernet (optional FCoE available)
  • 1Gb/s Ethernet (IP)



PERFORMANCE




Total Available Bandwidth (shared between all ports)Up to 1200 MB/sec full duplex
16Gb Fibre Channel portsUp to 1500MB/sec sustained
8Gb Fibre Channel portsUp to 820MB/sec sustained
10Gb Ethernet portsUp to 1000MB/sec sustained
1Gb Ethernet portsUp to 115MB/sec sustained
* Performance measured on a given client depends on other client’s usage, as well as client OS, drivers and the application specific I/O pattern. The above numbers have been measured in our labs, but may not reflect your particular reality.

 Tiger Box is plug and play, integrated all in one shared storage appliance that includes server, storage, and connectivity.



Each system that you want to connect to Tiger Box as a client must meet the following minimum system requirements:

Note: All computers that don`t meet the minimum system requirements can mount the shared Tiger Box storage as a regular SMB/CIFS share. Note that these computers cannot benefit from projectStore functionality.






Mac OS X:


  • Intel-based Mac with 1.33-GHz CPU.
  • Mac OS X Lion/Lion Server (32-bit and 64-bit), Mac OS X Mountain Lion/Mountain Lion Server (64-bit), Mac OS X Mavericks/Mavericks Server (64-bit), Mac OS X Yosemite/Yosemite Server (64-bit), Mac OS X El Capitan (64-bit).

    Note: No support for Mac OS X versions below 10.7.

  • 2GB of physical RAM at least.
  • 25MB of available hard-disk space for Tiger Client software installation.
  • 4Gb/8Gb/16Gb FC, 10GbE and/or 1GbE adapter for connection to the storage.
  • Network LAN connection (1Gb at least) for public communication.
  • The following TCP ports – 3000, 3001, 8555, 9120, 9121, 9122, 9123, 9124, 9125, 9126, 9127 – should not be blocked by a firewall if any.

    Important: It is advisable to remove any other SAN management or device filter software prior to installing the Tiger Client driver.




Windows:


  • PC with 1.33-GHz processor.
  • 32-bit or 64-bit Microsoft Windows® 7/Server 2008 R2, Windows® 8/Server 2012/Server 2012 R2, Windows® 10.

    Note:No support for Microsoft Windows® 95, Windows® 98, Windows® NT, Millennium Edition, Windows® 2000, Windows® XP/Server 2003/Server 2003 R2 or Windows® Vista.

  • 2GB of physical RAM at least.
  • 25MB of available hard-disk space for Tiger Client software installation.
  • 4Gb/8Gb/16Gb FC, 10GbE and/or 1GbE adapter for connection to the storage.
  • Network LAN connection (1Gb at least) for public communication.
  • The following TCP ports – 3000, 3001, 8555, 9120, 9121, 9122, 9123, 9124, 9125, 9126, 9127 – should not be blocked by a firewall if any.

    Important: It is advisable to remove any other SAN management or device filter software prior to installing the Tiger Client driver.




Linux:


  • PC with 1.33-GHz Intel processor.
  • 2 GB of physical RAM at least.
  • 25 MB of available hard-disk space for installation.
  • 4Gb/8Gb/16Gb FC, 10GbE and/or 1GbE adapter for connection to the storage.
  • Network LAN connection (1Gb at least) for public communication.



Red Hat Enterprise Linux Workstation/CentOS Linux 5.x:

  • 2.6.18-128.el5 (32-bit and 64-bit)
  • 2.6.18-128.1.16.el5 (32-bit and 64-bit)
  • 2.6.18-164.2.1.el5 (32-bit and 64-bit)
  • 2.6.18-164.el5 (32-bit and 64-bit)
  • 2.6.18-164.6.1.el5 (32-bit and 64-bit)
  • 2.6.18-164.9.1.el5 (32-bit and 64-bit)
  • 2.6.18-164.10.1.el5 (32-bit and 64-bit)
  • 2.6.18-164.11.1.el5 (32-bit and 64-bit)
  • 2.6.18-164.15.1.el5 (32-bit and 64-bit)
  • 2.6.18-238.el5 (32-bit and 64-bit)

Red Hat Enterprise Linux Workstation/CentOS Linux 6.x

  • 2.6.32-220.el6 (64-bit)
  • 2.6.32-279.el6 (64-bit)
  • 2.6.32-358.el6 (64-bit)
  • 2.6.32-431.el6 (64-bit)
  • (CentOS Linux 6.x only) 2.6.32-431.23.3.el6.centos.plus (64-bit)

Red Hat Enterprise Linux Workstation 5.x (Autodesk):

  • 2.6.18-128.el5.ADSK (64-bit)

Red Hat Enterprise Linux Workstation 6.2 (Autodesk):

  • 2.6.32-220.27.1.el6.x86_64 (64-bit)

FilmLightOS 2.x:

  • kernel 2.6.18-92.1.22.el5.centos.plus (64-bit)
  • kernel 2.6.18-194.11.4.el5.centos.plus (64-bit)

SuSe Linux 10:

  • 2.6.16.21-0.8-default (64-bit)
  • 2.6.16.21-0.8-smp (64-bit)
  • 2.6.16.60-0.85.1-default (64-bit)
  • 2.6.16.60-0.85.1-smp (64-bit)
  • 2.6.16.60-0.103.1-default (64-bit)
  • 2.6.16.60-0.103.1-smp (64-bit)

SuSe Linux 11:

  • 2.6.32.12-0.7-default (64-bit)
  • 3.0.80-0.7-default (64-bit)
  • 3.0.13-0.27-default (64-bit)

DaVinci Resolve Linux:

  • 2.6.18-164.el5 (64-bit)
  • 2.6.18-238.el5 (64-bit)
  • 2.6.32-358.el6 (64-bit)

SGO Mistika Linux:

  • 2.6.32.12-0.7-default (64-bit)
  • 3.0.13-0.27-default (64-bit)

Important: Changing any of the default kernel setting may prevent Tiger Client from operating properly.Note: Both uni and multiprocessor versions of the kernels are supported.

  • SELinux should be disabled prior to installing the Tiger Client software.
  • The following TCP ports – 3000, 3001, 8555, 9120, 9121, 9122, 9123, 9124, 9125, 9126, 9127- should not be blocked by a firewall if any.

    Important: It is advisable to remove any other SAN management or device filter software prior to installing the Tiger Client driver.
