Описание
НОВИНКА!!!

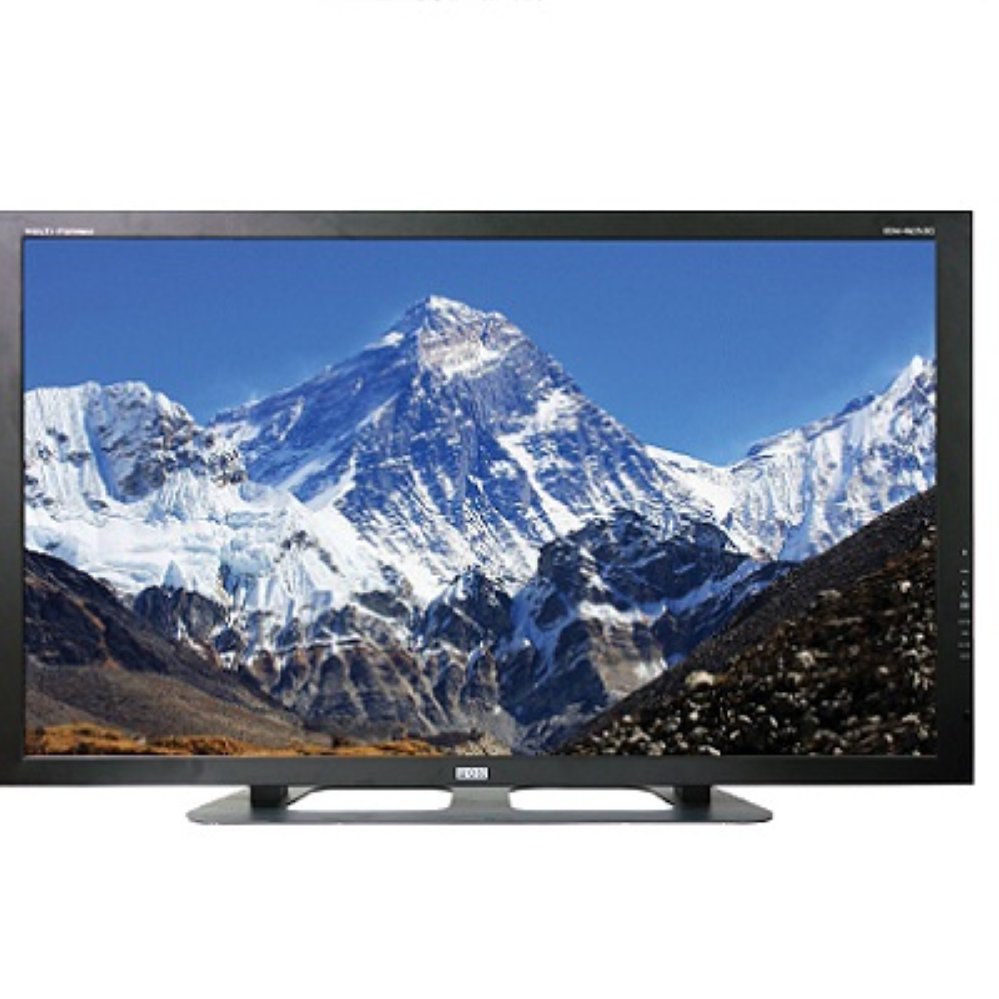

Цифровой информационный дисплей 46"
Свойства
46" broadcast monitor that can accept 3G SDI signal. It contains 3D LUT to reproduce precise colors.
Спецификация
Size46” Resolution1920 x 1080Pixel Pitch0.53mmColor10 bit (8bit + FRC)Viewing Angle178(H), 178(V)Luminance of White500 cd/m?Contrast4000 : 1Display Area (H X V)1018.08(H) x 572.67(V) (mm) Back LightLEDINPUT2 x BNCHD/SD-SDI, 3G/1.485G/270M3 x BNCAnalog(YPbPr/CVBS/S-Video/RGB)1 x HDMIHDMI (with HDCP v.1.1), 19pin Female1 x DVIDVI-I, 24pin, Female1 x VGADVI-I to VGA Jack (with gender) OUTPUT 2 x BNC SDI-1/2 Active Loop Output3 x BNC Analog(YPbPr/CVBS/S-Video/RGB) ANALOG INPUT LEVEL Composite1.0Vp-p(with sync), NTSC/PALYC(S-Video) Y :1.0Vp-p, C:0.286Vp-p Component(Y/Pb/Pr)Y :1.0Vp-p, Pb :0.7Vp-p, Pr :0.7Vp-p Component (R/G/B)G :1.0Vp-p(with Sync), B :0.7Vp-p, R :0.7Vp-pPC-RGB,Sync LevelR, G, B : 0.7Vp-p, H/V Sync : 4V ± 1Vp-p AUDIO INPUT/OUTPUT1 x Phone Jack InLine In(Stereo)2 x Phone Jack OutLine Out(Rear, Stereo), H/P Out(Front, Stereo)2 x Speaker Out2W+2W, Stereo GENERAL 1 x EthernetControl/Update, GPI-7 Port, RJ-45P Jack 2 x GPIOGPI-7 Port, RJ-45P Jack2 x SerialRS-422, RJ-11P Jack1 x USBfor firmware updatePower Requirements AC100-230V(50/60Hz)Power Consumption100WOperating Temperature0°C ~ 40°C (32°F~104°F)Operating Humidity20% ~ 80% RHWeight27KgDimensions(WxHxD)1078.4 x 628.0 x 71.3mm(27.3 x 15.9 x 1.8 inches)Accessories Power Cable Manual Cleaner
