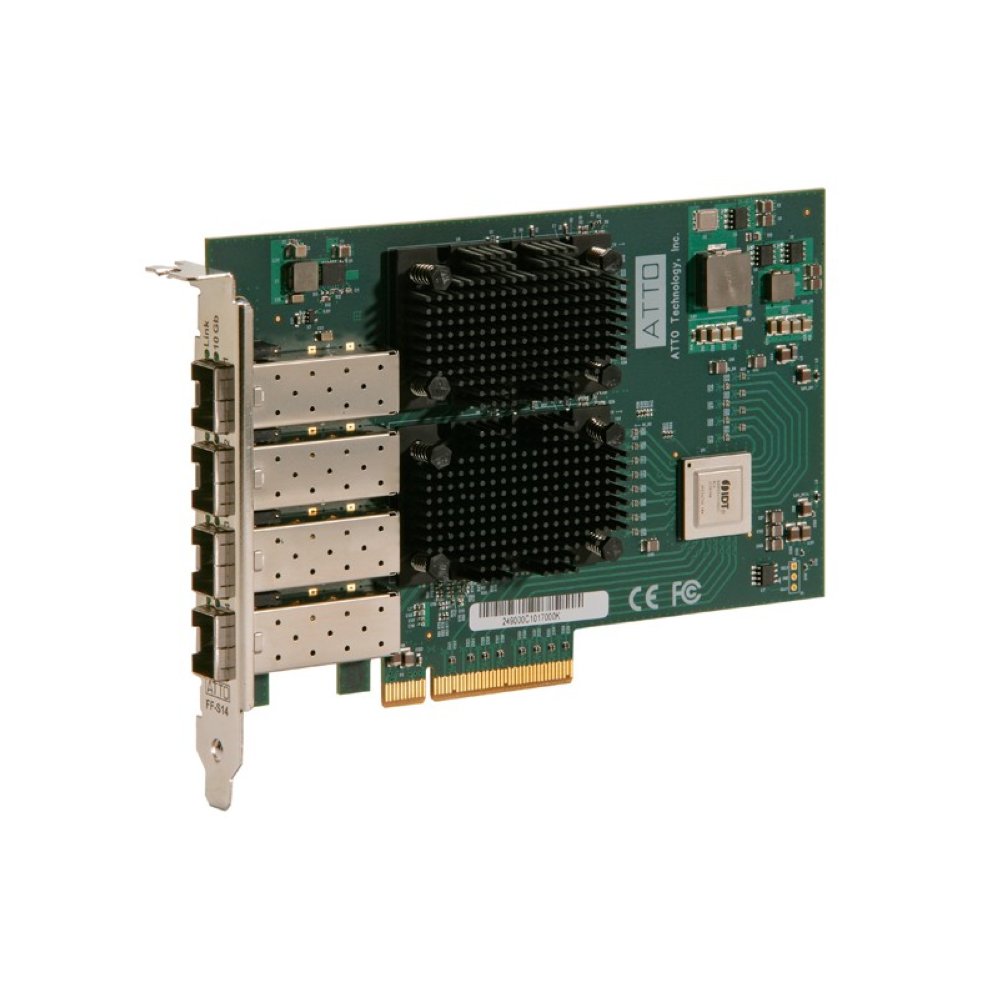

FastFrame NS14 Quad-port SFP+ Ethernet Adapter conserves PCI slots for more flexible system design, while drawing up to 60% less power than competing solutions. A lower power rating means lower energy costs, lower data center maintenance fees, and fewer worries about heat dissipation. This high performance adapter includes high-quality pluggable optical SFP+ tranceivers - a hidden cost with some competitor cards - and support for direct attach copper cables.
A single NS14 quad-port FastFrame adapter in a server provides an affordable, high-performance small network or storage solution for four clients. Or, link aggregation may be used to reduce server-to-switch bottlenecks. In addition to broad support for Windows® and Linux server and desktop operating systems, ATTO is a leader in high performance I/O connectivity for Mac OS® X environments. ATTO also offers Xtend SAN, an iSCSI initiator for OS X, for a complete solution. Acquire your NICs for multiple-OS environments from a single source — one familiar with the data-intensive demands of content editing. ATTO FastFrame outperforms the competition on OS X, while using significantly less power - reducing heat dissipation issues. ATTO engineers FastFrame NICs for stable, near-line-speed data rates across a wide range of file sizes for predictable network performance, and provides a single source for OEM 10Gb Ethernet requirements: Single-, dual-, and quad-port Optical NICs and CNAs with support for Direct Attach Copper, with Mac, Linux, and Windows OS support. Protocol support includes Enhanced/Lossless Ethernet & iSCSI. If you have a question or an issue, with ATTO you can expect a detailed answer and competent assistance based on 20 years’ experience in data-intensive environments. 10GbE Interface:
- LC SFP+ SR Optical Interface (4 SFPs included)
- Data Center Bridging (DCB)/Enhanced Ethernet
- Flow Control
- MSI Support
- Jumbo frames
- Link Aggregation
Offloads (reduce CPU Overhead):
- IPv4 Header Checksum
- TCP/UDP Checksum (IPv4 & IPv6)
- VLAN Offload
- IPsec Offload (Windows)
For Windows & Linux:
- NUMA & RSS (allows load-balancing across CPUs)
- RMON
- SNMP
- SR-IOV
For Virtualization:
- Advanced Packet Filtering
- VM Load Balancing
- VMDq Teaming Support
Host Bus Specifications:
- x8 mechanical and electrical PCIExpress 2.0 interconnect
- Backward compatible with PCIExpress 1.1
- Supports PCIe Base Spec 2.0, CEM Spec 2.0
Driver Support:
- Windows, Windows Server
- Linux RHEL, SLES (Latest Kernels)
- OS X 10.7 and later
- VMware ESXi (Latest Revision)
- Thunderbolt-aware driver for Mac OS X 10.7 & above
Other
- 3 year standard product warranty
- RoHS compliant
